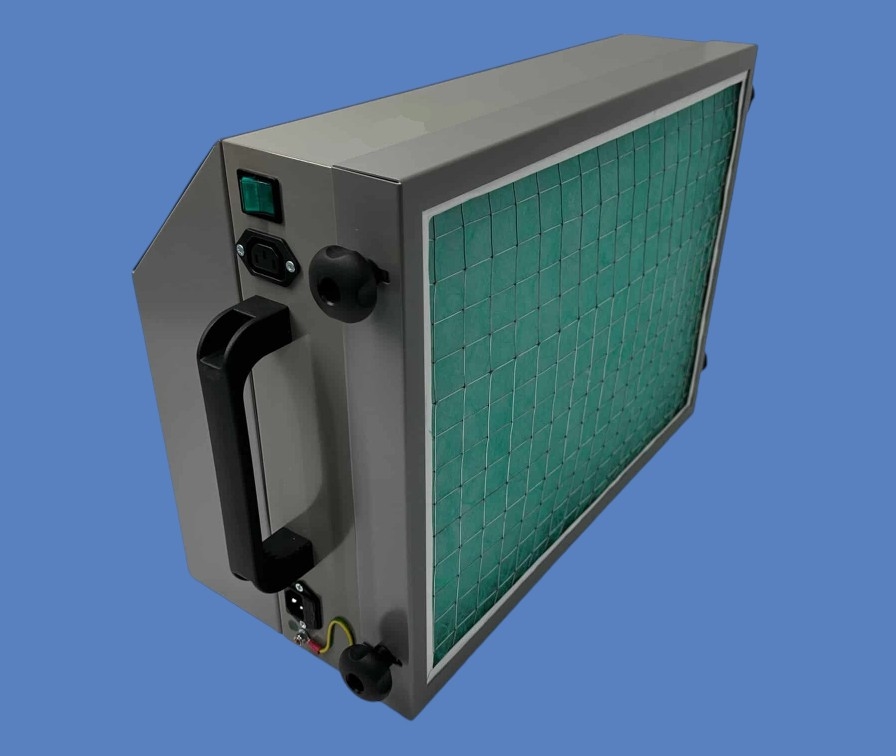

P1001-C A3 Recirculating Air Filtration Unit
Product Code: P1001-C
Price: £1,080.00
Description
Part No: P1001-C – Primary A3 Recirculating Air Carbon Filtration Unit
The P1001-C is a filtration unit with high-efficiency carbon filter inside. It is designed to offer local exhaust ventilation for smaller projects and immediate operator protection when external venting isn't possible. Additionally, the P1001-C also provides operators with a safe workstation for handling potential harmful chemicals. All processes are done under or beside the fan unit in front of the intake filter area.
This extraction unit serves the purpose to sit on top or behind a bespoke hood or surround. It enables users to design and construct hoods/enclosures/benches to suit their particular requirements. The unit can be positioned at any angle offering total flexibility of enclosure design. This unit is suitable for use in dental & medical laboratories, pharmaceutical labs, school science laboratories, design and research laboratories and electronic manufacturing.
Applications include the handling and use of Electrochemicals (cleaning solvents, conformal coatings etc) resins, sealants and adhesives both in aerosol and static form, solder pots and solder irons. Also used in orthopaedics and dental laboratories for controlling staff exposure to, typically, methyl methacrylate, cyanoacrylate adhesives and for the safe weighing of hazardous powders.
P1001-C Applications:
The P1001-C is suitable to filter fumes, vapours and particulates from:
Spray Adhesives/Aerosols
Conformal coatings (thin polymer film usually used to coat circuit boards)
Paints
Monomers
Resin
Sealants
Solders
Light Grinding
Organic Solvents
Cleaners
Other hazardous powders and particulates
Key Features
Quiet in operation at 61db
Lifetime Warranty
Can be assembled in seconds. Place onto an enclosure. hood, desk, bench or trolley and then simply plug in and switch on.
Steel construction finished in grey – fan/filter unit
particulate (intake) filter
bonded activated carbon filter
centrifugal blowers
External rotor motor (brushless, UL, VDE and CSA approved)
Sealed electricals, downstream of filters.
Dimensions:
505 x 385 x 245 (wxhxd) [overall]
Weight: 20kg
Description: Steel construction finished in grey - fan/filter units mounted - combinations of particulate filter and activated carbon filters - Fan/Blower motors: external rotor motor type brushless, UL,
VDE and CSA approved - sealed electrical wiring and switch, downstream of filters.
Air Volume at Free Air: 355m3/hr
Ave. Air Velocity at Filter Face: 0.60m/sec
Fan Motor Spec.: 230V, 50Hz, 105W, 115V 60Hz 125W
Filters: Particle Filter: IFA3 – Optional EPA Filter: EPA495P
Activated Carbon Filter AC200
What's included with the P1001-C?
Filter unit with Centrifugal Blower fans
1 x Particulate filter
1 x Activated Carbon Filter
Power Lead
Data/Warranty Booklet
Lifetime Guarantee
This filtration and extraction system carries a lifetime guarantee.
High Quality Filtration
The particulate (intake) filter is a three stage graduated fibre filter with a high dust holding capacity for long life. Filtration to 5 micron particles. (Optional HEPA filters available to approximately 0.3 micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated.
Demonstrating adequate control of the risks to the health and safety of employees, students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH). For LEV information for employers visit the HSE website.
Features
- Easy setup
- UK manufactured
- Cabinet version
- Extracts to atomsphere
- High suction force
- Suitable for lead-free solder fumes
- Universal power: 230VAC, 50-60Hz
- CE certified.
