3 Axis Robot 600mm x 500mm x 150mm F4603N
Product Code: F4603N
Price: £14,000.00
Description

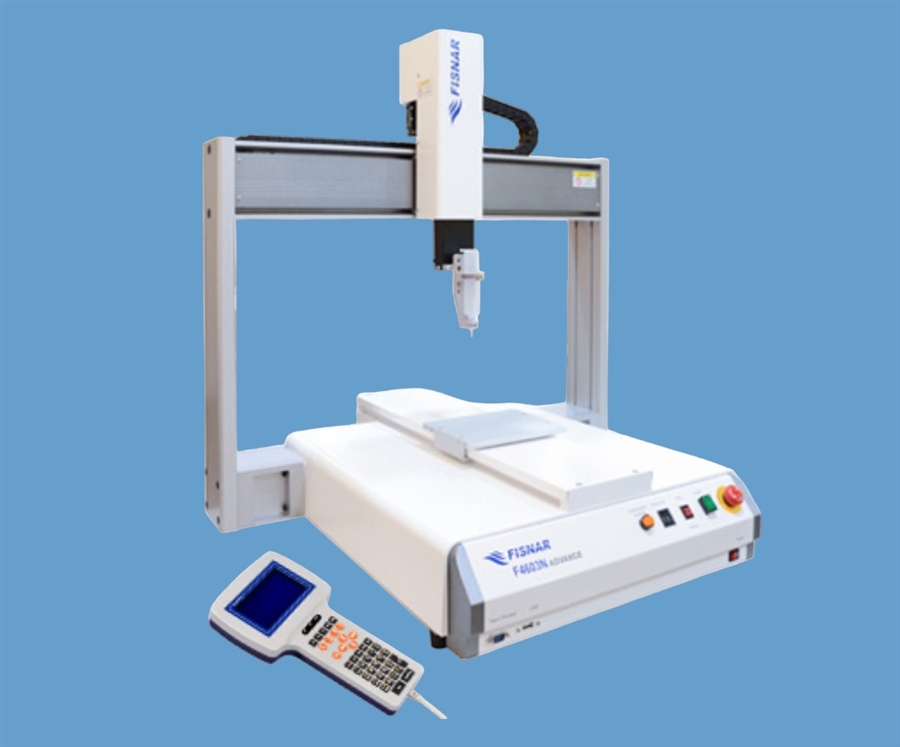

F4000 ADVANCE Series 3-Axis Benchtop Robot
The F4000 ADVANCE 3-axis benchtop robots are designed to ensure precise fluid placement and positioning. When configured with a syringe barrel, cartridge, or valve system, a high level of accuracy and repeatability is achieved. Specifically built for fluid dispensing processes, the F4000 ADVANCE proprietary robot software is user friendly and enables the creation of complex dispensing routines (dots, lines, circles, arcs, and fills) that can be set up and operational in just minutes using the teach pendant (included).
The proprietary windows programming software allows for DXF files to be imported into the software and have dispense lines or dots quickly created from the imported CAD data. This feature dramatically reduces programming time for complex dispense patterns or when there is a high number of dispense positions.
The F4000 ADVANCE can be supplied individually or as a complete stand-alone machine system by integrating into a safety enclosure.
F4603N: 3-axis Robot - 600 x 500 x 150 mm Work Area
Modular connectivity for easy installation of accessories at any time such as the CCD vision kit, tip-alignment, or height sensor
USB Port for data transfer and back-up
Program selector switch and fluid purge button
True 3D interpolation and simultaneous motion control
Teach pendant included for easy programming
High positional accuracy improves dispense results
Proprietary user-friendly software allows programs to be easily and quickly set up using the teach pendant or PC
Increased productivity due to faster cycle times and less rejects
Windows software provides greater control and visibility of complete dispense program
USB Port for data transfer and back-up
Program selector switch and fluid purge button
True 3D interpolation and simultaneous motion control
Teach pendant included for easy programming
High positional accuracy improves dispense results
Proprietary user-friendly software allows programs to be easily and quickly set up using the teach pendant or PC
Increased productivity due to faster cycle times and less rejects
Windows software provides greater control and visibility of complete dispense program
Maximum Working Area X/Y/Z: 600 x 500 x 150 mm
Maximum Speed (X&Y/Z): 800 / 320 mm / sec (31 / 13” / sec)
Work Load 10 kg (22 lb)
Tool Load 5 kg (11 lb)
Repeatability +/- 0.008 mm
Motion Control PTP & CP
Drive System 3-phase micro stepping motors
Data Memory 1-100 programs | 1-50,000 points / program
I/O Signals 8 inputs / 8 outputs
External Interface USB / RS232
Power Supply Auto-switching AC 100 - 240 VAC, 320 watts
Dimensions (W/D/H): 810 x 717 x 815 mm
Weight: 49kg
APPROVALS
CE, RoHS, WEEE
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Maximum Speed (X&Y/Z): 800 / 320 mm / sec (31 / 13” / sec)
Work Load 10 kg (22 lb)
Tool Load 5 kg (11 lb)
Repeatability +/- 0.008 mm
Motion Control PTP & CP
Drive System 3-phase micro stepping motors
Data Memory 1-100 programs | 1-50,000 points / program
I/O Signals 8 inputs / 8 outputs
External Interface USB / RS232
Power Supply Auto-switching AC 100 - 240 VAC, 320 watts
Dimensions (W/D/H): 810 x 717 x 815 mm
Weight: 49kg
APPROVALS
CE, RoHS, WEEE
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for form-in-place gaskets, adhesives, potting, coating and filling
- High resolution 0.008mm
- Performs continuous path and point-to-point motions
- Quick fluid-purge button located on front panel
- Software tip alignment routine for quick program offsets when changing dispensing tips
- USB connector allows system updates and program interchange between robots
- Step-and-repeat functions _ program one object only for multiple identical objects
- On board 100 programs, 50,000 point memory capacity
- 1 Year Warranty - CE Certified
