6oz Battery Sealant Dispenser ADV-60BL
Product Code: ADV-60BL
Price: £495.00
Description
Description

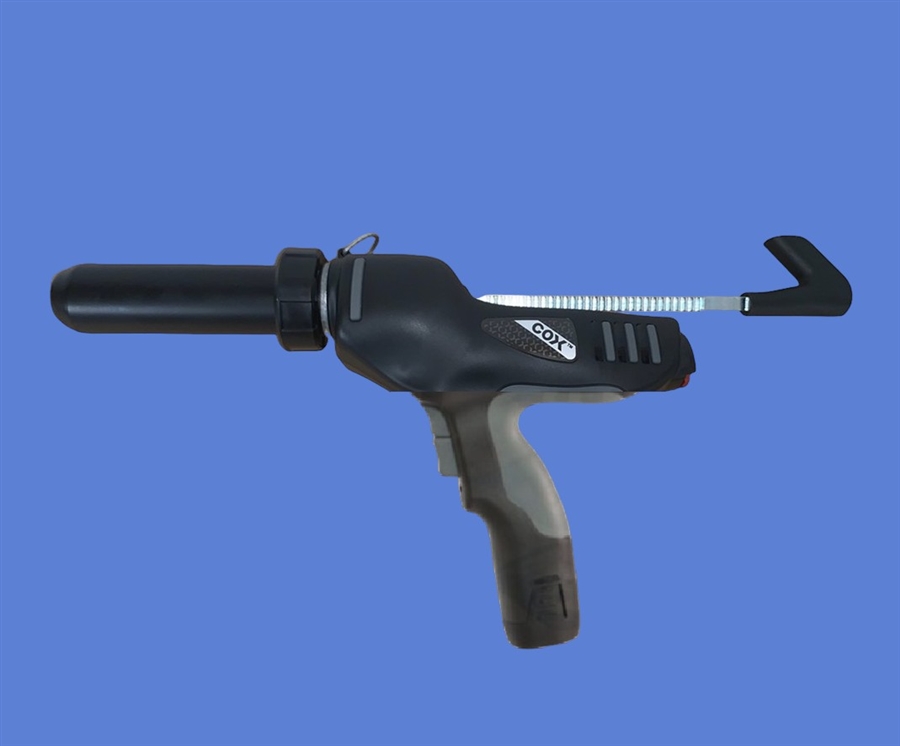

The ADL Model ADV-60BL is a battery powered dispensing gun intended for the application of sealants, adhesives, potting compounds, and other materials packaged in 6 Ounce size Semco, EFD or Techcon cartridges, SEMKIT or TECHKIT packages. The unit is designed for usage in the aerospace and electronics industries and offers the convenience of a light-weight, powered dispensing solution without the inconvenience of an air hose. Each unit comes with (1) 10.8V lithium-ion battery, a 6oz. metal retainer, a charger base and cord. Charger cords are readily available with electric plugs to fit outlets.
The ADL Model ADV-60BL is a battery powered dispensing gun intended for the application of sealants, adhesives, potting compounds, and other materials packaged in 6 Ounce size Semco, EFD or Techcon cartridges, SEMKIT or TECHKIT packages. The unit is designed for usage in the aerospace and electronics industries and offers the convenience of a light-weight, powered dispensing solution without the inconvenience of an air hose. Each unit comes with (1) 10.8V lithium-ion battery, a 6oz. metal retainer, a charger base and cord. Charger cords are readily available with electric plugs to fit outlets.
Recommendations
The Model ADV-60BL dispensing gun is designed to be used with materials packaged in Semco or Techcon cartridges with a wiper plunger (WP) ONLY. Typically, pre-mixed and frozen sealants are packaged with a black P-plunger with which this gun is NOT COMPATIBLE. Aerospace sealants supplied in Semkit and Techkit packages are most commonly packaged with a wiper plunger (WP), which is the type that this gun is specifically designed for. Additional retainers for this unit can be purchased separately.
The Model ADV-60BL dispensing gun is designed to be used with materials packaged in Semco or Techcon cartridges with a wiper plunger (WP) ONLY. Typically, pre-mixed and frozen sealants are packaged with a black P-plunger with which this gun is NOT COMPATIBLE. Aerospace sealants supplied in Semkit and Techkit packages are most commonly packaged with a wiper plunger (WP), which is the type that this gun is specifically designed for. Additional retainers for this unit can be purchased separately.
Accessories
Adhesive Dispensing Ltd as a business provides precision moulded cartridges, plungers, nozzles, luer lock tip adapters, and the largest range of precision tips. When these accessories are used in conjunction with the ADV-60BL dispensing gun, the exact amount of material can be dispensed at exactly where it is needed without material mess or waste.
Adhesive Dispensing Ltd as a business provides precision moulded cartridges, plungers, nozzles, luer lock tip adapters, and the largest range of precision tips. When these accessories are used in conjunction with the ADV-60BL dispensing gun, the exact amount of material can be dispensed at exactly where it is needed without material mess or waste.
Features
- Light-weight (less than 2kg)
- Ergonomic design - optimizes the weight balance in operators hands
- Improved portability, no air hose required
- 30 to 60 minutes to completely charge 10.8V lithium-ion battery
- Fully charged battery can dispense between 60 and 70 x 6 Ounce Semco PPG or Techcon cartridges
- Variable dispensing speed control on rear of gun from 1 (low) to 9 (high)
Operation
Before using the ADV-60BL dispensing gun, operators will be required to charge the 10.8v lithium-ion battery for the recommended 60 minutes. Remove the battery from the charger and insert into the bottom of the dispensing gun handle until it clicks, indicating the battery is fully-seated. Adjust the dispensing dial on the rear of the gun to the preferred dispensing speed 1-9 (1 = slowest, 9 = fastest).
- Light-weight (less than 2kg)
- Ergonomic design - optimizes the weight balance in operators hands
- Improved portability, no air hose required
- 30 to 60 minutes to completely charge 10.8V lithium-ion battery
- Fully charged battery can dispense between 60 and 70 x 6 Ounce Semco PPG or Techcon cartridges
- Variable dispensing speed control on rear of gun from 1 (low) to 9 (high)
Operation
Before using the ADV-60BL dispensing gun, operators will be required to charge the 10.8v lithium-ion battery for the recommended 60 minutes. Remove the battery from the charger and insert into the bottom of the dispensing gun handle until it clicks, indicating the battery is fully-seated. Adjust the dispensing dial on the rear of the gun to the preferred dispensing speed 1-9 (1 = slowest, 9 = fastest).
Completely depress the release trigger on the handle with one hand and pull the push-rod all the way to the back of the dispensing gun with the other hand. Insert the filled cartridge into the retainer, attach the desired nozzle, and insert the loaded retainer onto the dispensing gun rotating clockwise. To begin dispensing, completely depress the power trigger on the handle. When all material has been dispensed from the cartridge, depress the release trigger, and turn the retainer counter-clockwise which releases the retainer from the dispensing gun. Remove the nozzle and the disposable cartridge. Dispose of any cured material in accordance with local regulations and instructions on the Safety Data Sheet (SDS).
Specifications:
Weight with Battery: 1.95kg
Maximum Thrust: 2.5kN
Voltage: 10.8V
Battery Capacity: 1.5Ah
Battery Charge Time: 30 min.
Battery Type: Li-ion
Handle Material: PC/ABS
Retainer Material: Anodized Aluminum
Tool Component Approvals: CE, REACH, RoHS
Cartridge Capacity: 177mL/ 177cc (6oz)
Viscosity: Low/Medium
Standard Color: Black/Grey
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Completely portable cordless design
- Threaded lightweight retainer
- Robust construction
- Quick cartridge insertion
- For use with 6oz semco or techcon cartridges, Semkits and Techkits Reverse action after each cycle eliminates ooze Residue indicator
- Adjustable speed control
- Fast charge battery
