200cc Big Barrel & Piston Kit AD200L-A
Product Code: AD200L-A
Price: £4.50
Description

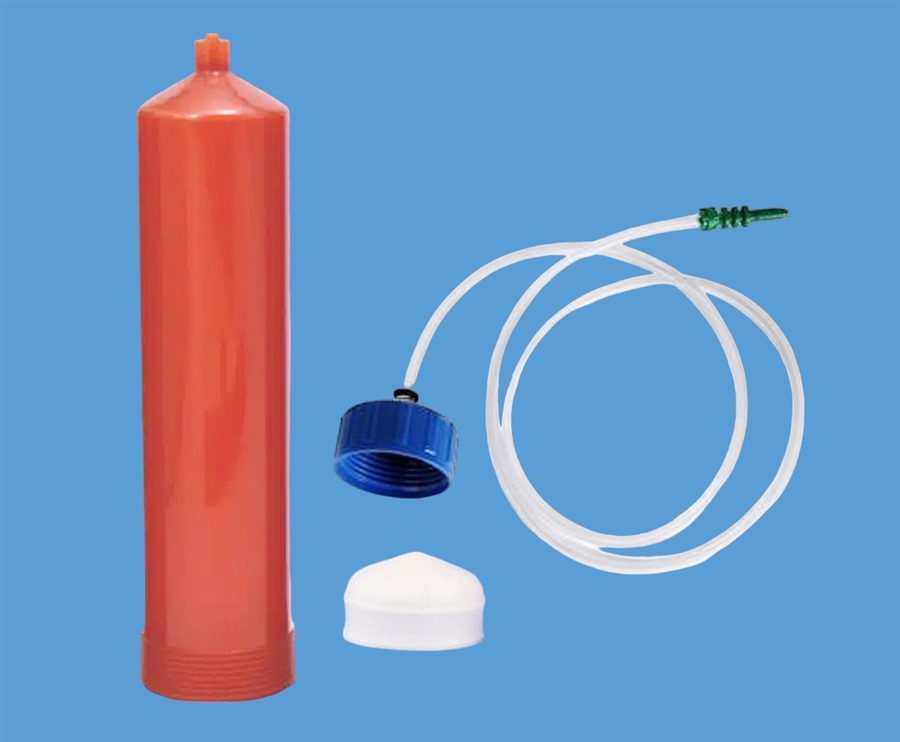

The AD200L-A is a large industrial barrel system that includes wiper piston, threaded air cap and airline hose with quick connector. It will connect directly into any air-powered dispenser. Load the barrel with material, insert the wiper piston, attach the air cap to the air powered dispenser. As the barrel is pressurised, the wiper piston moves down to dispense the material consistently.
Features a double helix luer lock for secure dispense tip attachment. Supplied as a complete assembly. Amber (Tinted) colour. Amber provides protection of UV/visible light block (up to 520nm). Suitable for use with UV cure adhesives. This large barrel can also be used as a fluid reservoir to feed liquids and pastes directly into our dispense valves. Maximum operating pressure is 100 psi (6.9bar). Individual syringe barrels and pistons are available to order separately as the air cap and hose assembly can be re-used.
MPN: AD200L-A
Barrel Material: High Density Polypropylene (HDPP)
Piston Material: Medium Density Polyethylene (MDPE)
Barrel Colour: Amber
Piston Colour: White
Volume Capacity 200cc (200ml)
Tip Connection: Luer Lock
Barrel Length: 9.21" (234.0mm)
Barrel Outer Diameter: 1.89" (48.0mm)
Barrel Inner Diameter: 1.61" (41.0mm)
Tip Hole Outlet Size 0.118" (3.0mm)
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Pack Size: 1
Features a double helix luer lock for secure dispense tip attachment. Supplied as a complete assembly. Amber (Tinted) colour. Amber provides protection of UV/visible light block (up to 520nm). Suitable for use with UV cure adhesives. This large barrel can also be used as a fluid reservoir to feed liquids and pastes directly into our dispense valves. Maximum operating pressure is 100 psi (6.9bar). Individual syringe barrels and pistons are available to order separately as the air cap and hose assembly can be re-used.
MPN: AD200L-A
Barrel Material: High Density Polypropylene (HDPP)
Piston Material: Medium Density Polyethylene (MDPE)
Barrel Colour: Amber
Piston Colour: White
Volume Capacity 200cc (200ml)
Tip Connection: Luer Lock
Barrel Length: 9.21" (234.0mm)
Barrel Outer Diameter: 1.89" (48.0mm)
Barrel Inner Diameter: 1.61" (41.0mm)
Tip Hole Outlet Size 0.118" (3.0mm)
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Pack Size: 1
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Silicone and chloride free plastics
- Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment on barrel
- Dual blade white wiper piston
- Zero draft inner walls for precision
