Digital Timed Dispenser 0-100 psi Model DC50-MAX
Product Code: DC50-MAX
Price: £595.00
Description

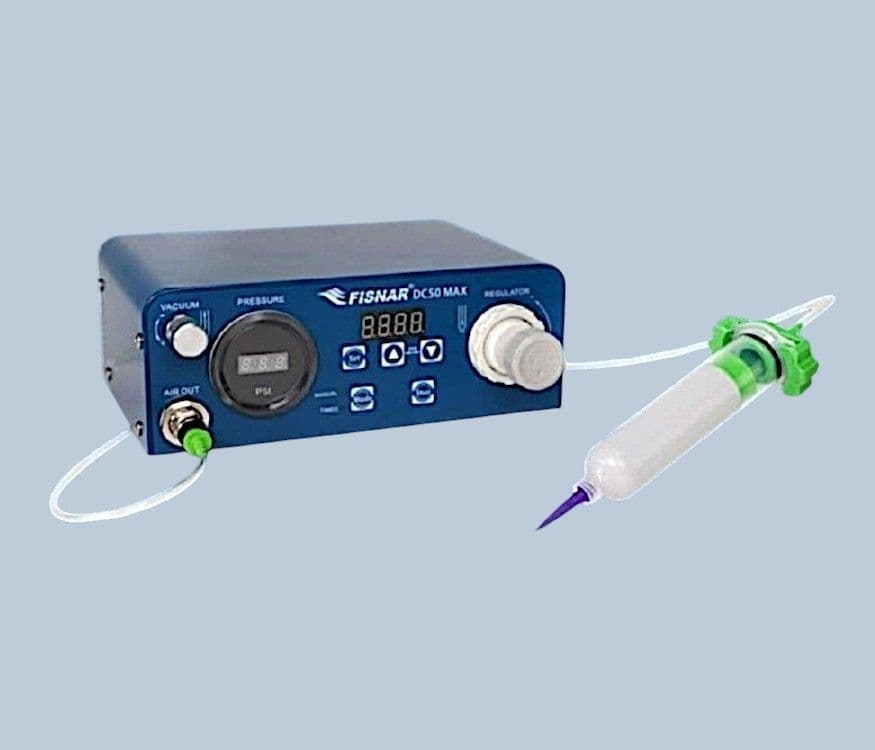

Digital Benchtop Dispenser with Digital Timer, Vacuum Suck-back and LED Display
A precision, easy to use digital dispenser with a bright 4-digit LED display and digital pressure gauge. The simple user-friendly programming enables a dispense cycle to be quickly created and automatically displayed. This system offers a precision regulator & digital pressure gauge to ensure precise flow control, adjustable vacuum suck-back control to prevent fluid dripping from the dispense tip and is suitable to dispense both low and high viscosity materials.
The DC50-MAX has two modes of operation:
Manual Mode: The dispense operation is manually controlled by a foot pedal.
Timed Mode: Dispenses at a pre-set time for controlled, repeatable shot sizes.
Benefits
- 1 programmable memory slot
- 0-100 psi pressure regulator gauge
- 2 dispense modes (manual & timed)
- Worldwide compatible power supply
- 4-digit LED display (0.000-99.99 seconds)
- Durable aluminium housing designed for industrial work environments
- Foot pedal switch & syringe stand included
- Simple, compact & easy to use design
Features
- 1 programmable timer memory slot
- Digital timer control for precise & repeatable dispensing
- Adjustable vacuum suckback control prevents fluid dripping from dispense tip
- Suitable for dispensing both low and high viscosity fluids
- Industry standard air-output connector ensures universal compatibility with syringe adapter heads
- Low-cost system with high reliability
- Worldwide compatible power supply
Specifications
Size: 7.56 x 7.17 x 3.00” (192 x 182 x 76 mm)
Weight: 2.14 lbs (0.97 kg)
Input AC to Power Supply 100 - 240 VAC, 50/60 Hz
Cycle Rate Up to 600 cycles / min
Relative Humidity 20 - 90% (No condensation)
Operating Temperature 50 - 104 °F (10 - 40 °C)
Dispense time: 0.008 - 99.99 seconds
Operation Modes: Manual, Timed, Cycle
Voltage: 100 VAC - 240 VAC 50/60Hz
Internal Voltage: 24 VDC
Air input: 70 to 100 psi (5 to 7 bar)
Air output: 1-100 psi (0.1 - 7 bar)
Standards: CE approved, RoHS compliant
Warranty: 1 Year
Commodity Code: 90282000
Brand: Fisnar
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Manual, Timer, or Cycle Operation Modes
- Foot Pedal Controlled
- Programmable Timer 0.008 - 99.99 seconds
- Suck-Back feature ensures no dripping
- Stores up to 1 dispensing routines
- Complete with an accessory dispensing kit
