Mix Nozzle 6mm ID x 24 EL ADMC06-24SP pk/100
Product Code: ADMC06-24SP
Price: £225.00
Description

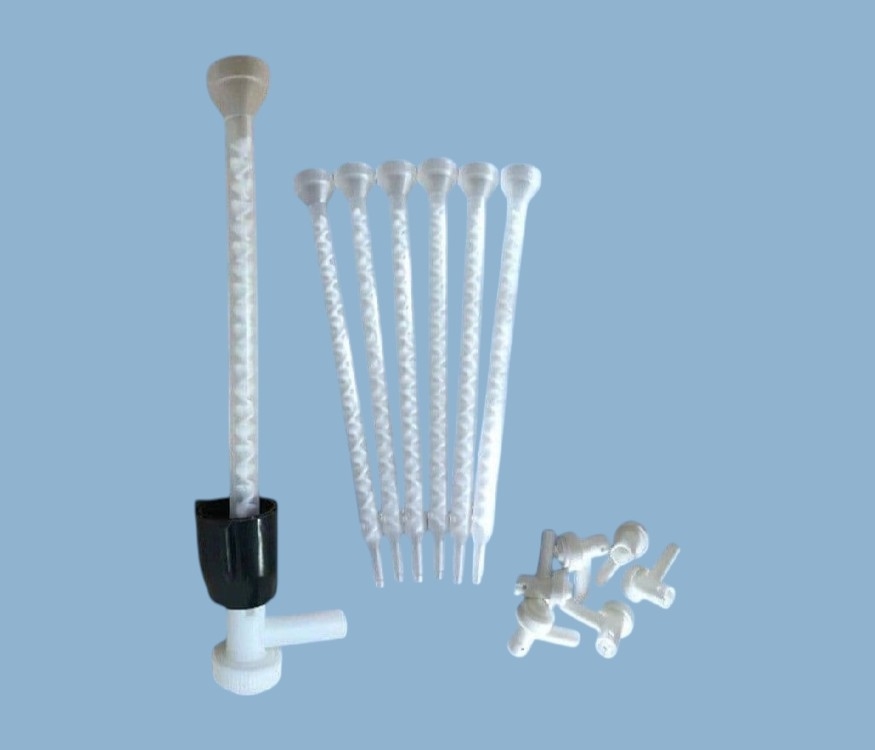

Bell mouth inlet, helical static mixer for 1:1 and 2:1 ratio 200ml, 400ml and 600ml dual component epoxy type cartridges. This version is the spray assembly kit. Includes 6mm ID x 24 elment bell-mouth mixer nozzle, black lock nut to cartridge, spray nozzle adapter with air tube input. As the blended resin leaves the end of the mix nozzle. the air pressure from the side inlet atmomises it to create a spray. Air pressure can be adjusted to suit.
These mixer nozzles are suitable for all two-component materials. These mixers have white acetal inner elements and are the body is constructed of high grade polypropylene. High quality mixer nozzles for use with dual component C-System type cartridges. All items are industrial grade safe and silicone free.
Part ID: ADMC06-24SP
Material: Polypropylene Outer/ Acetal Element
Nozzle Colour: Natural Outer, White Element
Nozzle Inner Diameter: 6.30mm
Nozzle Outer Diameter: 9.50mm
Nozzle No. Of Elements: 24
Nozzle Length: 189mm
Retained Volume: 4.20ml
Spray Air Tube Inlet: 5.75mm ID
Spray Air Tube Adapter Colour: White
Cartridge Nut Colour: Black
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Asia
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
These mixer nozzles are suitable for all two-component materials. These mixers have white acetal inner elements and are the body is constructed of high grade polypropylene. High quality mixer nozzles for use with dual component C-System type cartridges. All items are industrial grade safe and silicone free.
Part ID: ADMC06-24SP
Material: Polypropylene Outer/ Acetal Element
Nozzle Colour: Natural Outer, White Element
Nozzle Inner Diameter: 6.30mm
Nozzle Outer Diameter: 9.50mm
Nozzle No. Of Elements: 24
Nozzle Length: 189mm
Retained Volume: 4.20ml
Spray Air Tube Inlet: 5.75mm ID
Spray Air Tube Adapter Colour: White
Cartridge Nut Colour: Black
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Asia
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400/600ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Spray end
- Use on dual cartridges
- Supplied in sealed packs
