MMT-Series Precision Metal Tip MMT007 Adhesive Dispensing Ltd

Description

The MMT needle series consist of a stainless steel constructed, high quality micro precision range. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. In diameters from 0.15mm to 1.4mm and 18.25mm long. Suitable for dispensing most fluids, SMT adhesives and solvents.

Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut to a high precision for total consistency. Supplied in a sealed box of 1 tip.

Key Features:
- Smooth internal fluid path:
- Reduces turbulent fluid flow
- Reduces back pressure
- Increases fluid flow rates.
- Reduces air entrapment and fluid dripping

- Clog resistant - ideal for filled fluids
- Thin walls - Reduces fluid tailing and stringing
- Ideal for automatic dispensing applications
- Provides accurate positioning
- Metal construction

Brand: Adhesive Dispensing Ltd
Commodity Code: 90289090
Details: Industrial Grade

Inner Diameter: 0.70mm - 0.028"

Outer Diameter: 0.80mm - 0.031"
Tip Colour: Silver
Tip Materials: Stainless Steel
Part ID: MMT007-1

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Micro precision dispense dots and lines Conical tapered convergent duct (optimized flow path)
Repeatable precision
Thin rigid metal construction
Color coded hubs
Secure Luer lock connection
Precision solder paste deposition
Precision close die tolerance underfill
Medical precision
MEMS
Semiconductor packaging
Automated micro-dispensing applications
Re-usable hub option
Precision machined accuracy
Improved accuracy on robotic applications
Dispense higher viscosities with lower pressures
Resist clogging, improved fluid break off, no stringing
A solution for proximity challenges
Luer adaptation

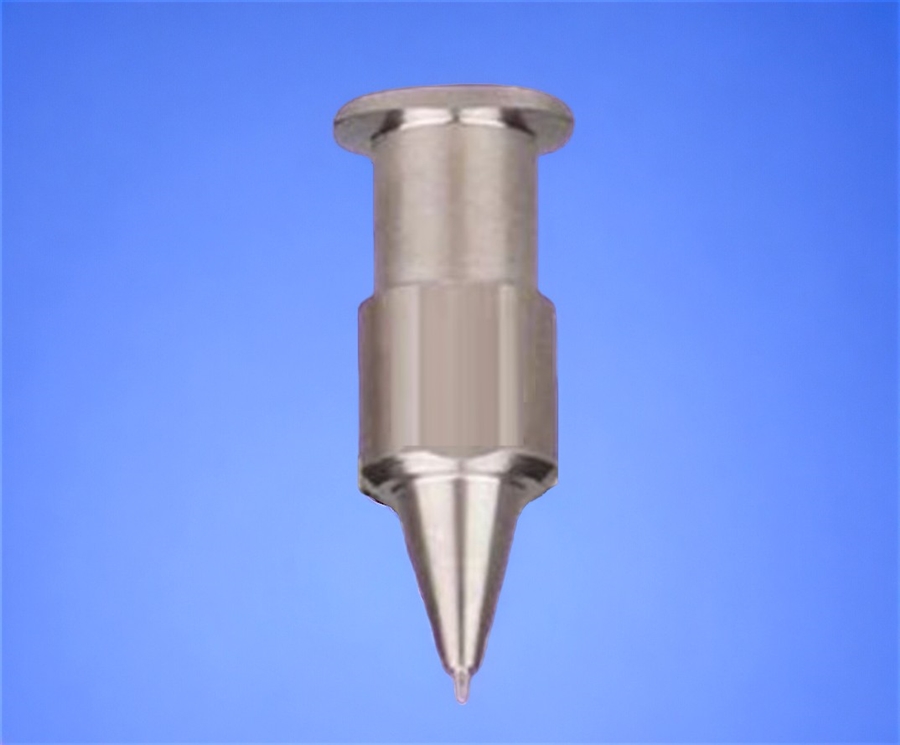

0.7mm ID MMT-Series Precision Tip MMT007 pk/1

0.7mm ID MMT-Series Precision Tip MMT007 pk/1
