50 Litre Pressure Pot 0-100 PSI AD5000CL-ST
Product Code: AD5000CL-ST
Price: £3,175.00
Description

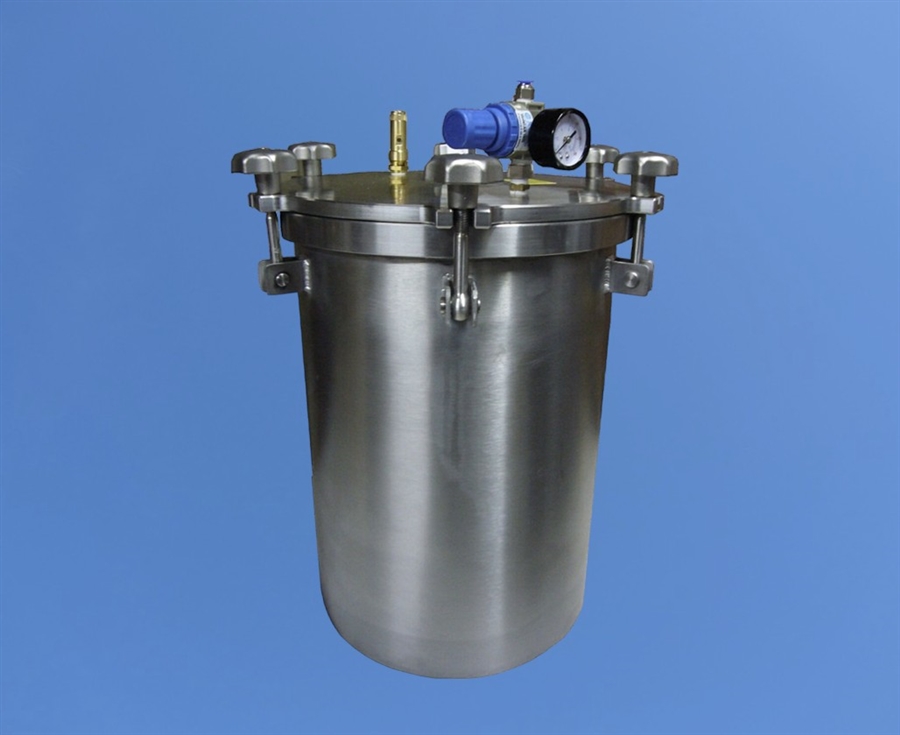

High quality stainless steel pressure pot (pressure up to 100 psi) designed to accommodate all solvents and adhesives, as well as cyanoacrylates and UV's direct from the manufacturers bottles. It has a stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use but can use plastic fittings if dispensing reactive adhesives. Airtight Fluorocarbon Rubber seals ensure no leakage or air entrapment problems. 100 psi operating pressure easily handles fluid with viscosity up to around 30,000 CPS.
The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body is stainless steel and the lid is aluminium.
The outlet port for this tank is at the centre of the tank lid.
MPN: AD5000CL-ST
Tank Capacityu: 50 Litre
Material: Stainless Steel
Colour: Silver
Outer Diameter: 315mm Diameter x 695mm Height
Inner Chamber: 305mm Diameter x 575mm Deep
Tank Thickness: 3mm
Lid Thickness: 12mm
Air Inlet Thread: 1/4 Inch
Fluid Outlet Thread: 6 x 8mm (located centre of tank lid)
Weight : 38 kg
Max Pressure: 100 psi (6.9 BAR) r
Warranty: 1 Year
Details: CE certified and Rohs compliant
Commodity Code: 90289090
The pressure gauge and pressure regulator are located on top for easy reading and access. When dispensing adhesives, a container or bottle or liner should be placed inside the tank chamber. Do not pour adhesives directly into the pot. Main tank body is stainless steel and the lid is aluminium.
The outlet port for this tank is at the centre of the tank lid.
MPN: AD5000CL-ST
Tank Capacityu: 50 Litre
Material: Stainless Steel
Colour: Silver
Outer Diameter: 315mm Diameter x 695mm Height
Inner Chamber: 305mm Diameter x 575mm Deep
Tank Thickness: 3mm
Lid Thickness: 12mm
Air Inlet Thread: 1/4 Inch
Fluid Outlet Thread: 6 x 8mm (located centre of tank lid)
Weight : 38 kg
Max Pressure: 100 psi (6.9 BAR) r
Warranty: 1 Year
Details: CE certified and Rohs compliant
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- 100 psi - High operating pressure
- Fluid Outlet Port - On the lid for easy access Four knobs to open/close lid - For positive and uniform seal
- Pressure Gauge - Located on top for easy reading
- Pressure Regulator - Located on top for ease of access
- Relief Valve with Pull Ring - To depressurise after usage
- Disposable polyethylene - Fluid lines can be changed quickly
- Ferrule - Disposable with tubing eliminates cleanup
- Hose Kit - Supplied with tank
- Tube Sizes - 1/4", 3/8" and 4mm fittings available
