Description

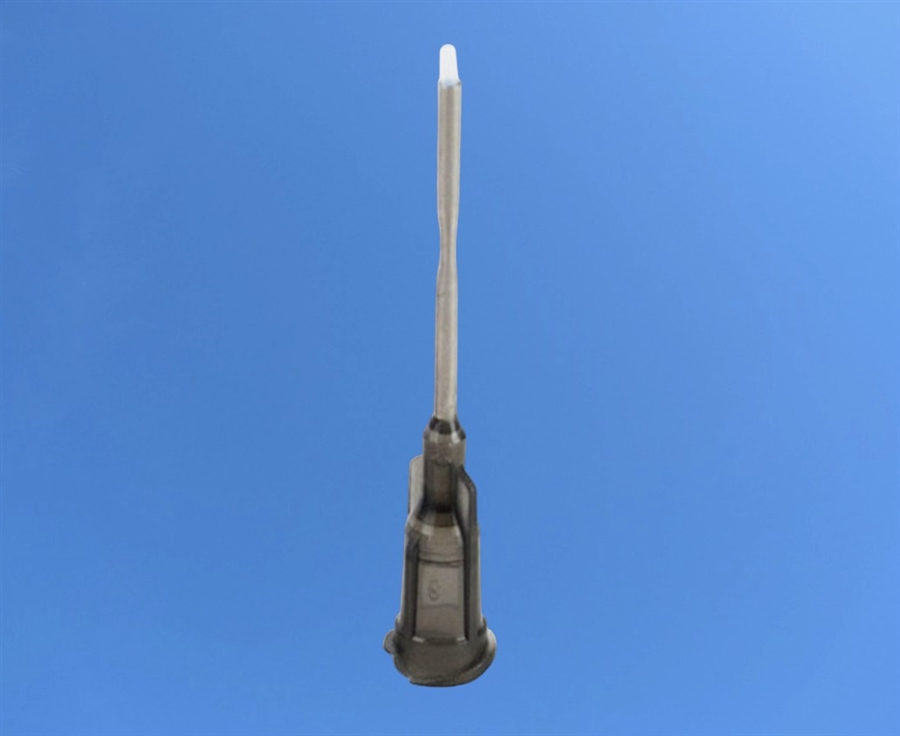

Precision crimped PTFE-Lined dispense tip ideally suited to clog-free dispensing of Cyanoacrylate adhesives and other low to medium viscosity fluids. A standard stainless shaft length of 1.0". Colour coded double helix locking hub. The PTFE Lined Tip is suited to the controlled application of Cyanoacrylates, Solvents, Activators, Primers and other liquids.

The crimped PTFE inner tube prevents reactive Cyanoacrylates from clogging during application. The PTFE tube extends 1/8" from the stainless steel tube to prevent damage to sensitive substrates. Supplied in sealed boxes of 50 with bulk available on request. This tip features a double helix luer locking pink hub for easy identification. The tips are silicone free and chloride free to prevent contamination of any liquid dispensed. Tips are colour coded for gauge size.

The tip features a slightly tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids.

Part ID: TF720100PK
Material: PTFE/ Polypropylene/ Stainless Steel
Hub Colour: Grey
Inner Diameter: 0.020" (0.51mm)
Tube Length: 1.0" - 25.40 mm
Maximum Pressure: 100 PSI
Attachment: Double helix luer lock
Details: Industrial Grade, Silicone Free
Commodity Code: 84249020
Brand: TSI
Pack Size: 50

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Prevents Cyanoacrylate clogging
Zero damage to substrates
Compatible with wide range of fluids
Industrial safe to 100 psi
Silicone and chloride free
Precision crimp to Teflon tube
Double helix luer colour coded hubs

Grey Teflon Lined Tip 0.5" TF720100PK pk/50

Grey Teflon Lined Tip 0.5" TF720100PK pk/50
