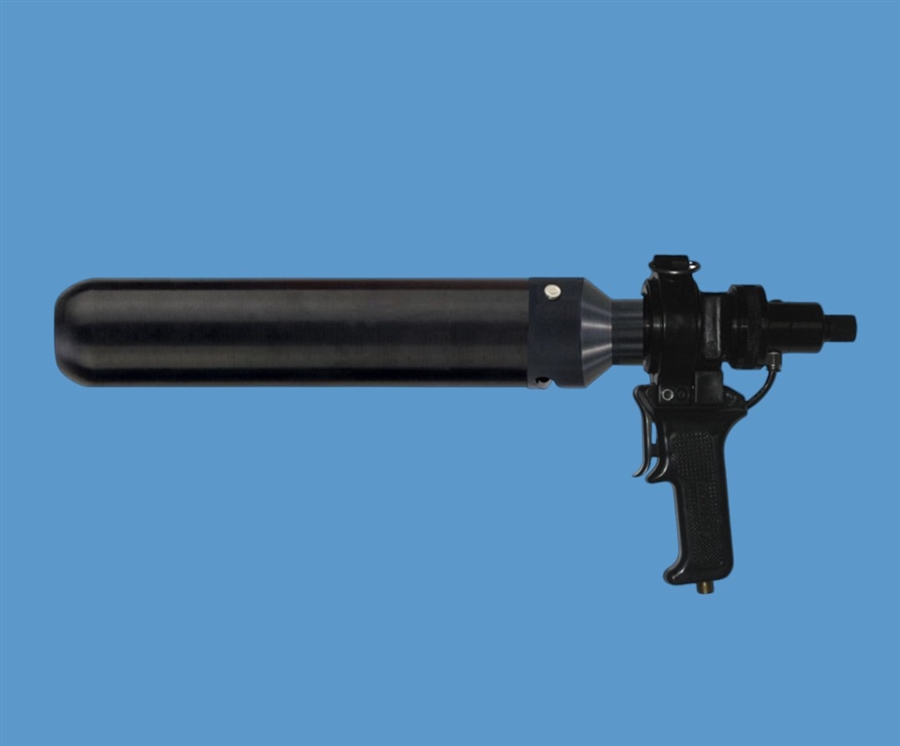

32oz Pneumatic Cartridge Applicator Gun AD110-32
Product Code: AD110-32
Price: £625.00
Description
A pneumatic metal
cartridge gun with quick attach bayonet retainer, threaded adapter and trigger handle incorporating an adjustable air regulator. Quick exhaust air release
to reduce pressure build up and reduce drips or material oozing. Hook ring on the top to use with a counter balance and support if required. Use with 32oz (960cc)
cartridges (as shown in image 2). Apply controlled beads or potting of most adhesives,
fluids, sealants, RTV, grease, gels, long curing epoxies, mastics and
potting compounds. Use at pressures to 100 PSI.
Load in a filled 32oz Semco PPG or Nordson EFD cartridge. Replace the retainer and twist on tightly to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Cartridge gun sparesm air hoses and accessories are also available.
SPECIFICATIONS:
- Maximum Thrust: 2.5kN
- Barrel Length: 349.25mm
- Pressure: To 100 PSI
- Air Inlet: 1/4 Inch BSP Male Thread
- Gun Colour: Black
- Tool Weight: 2.25kg
- Barrel Material: Anodised Aluminium
- Handle Material: Base Moulding, (PC), (ABS)
- Approval: CE
- Warranty: 1 Year
- Commodity Code: 90289090
- Origin: GB
- Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Load in a filled 32oz Semco PPG or Nordson EFD cartridge. Replace the retainer and twist on tightly to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Cartridge gun sparesm air hoses and accessories are also available.
SPECIFICATIONS:
- Maximum Thrust: 2.5kN
- Barrel Length: 349.25mm
- Pressure: To 100 PSI
- Air Inlet: 1/4 Inch BSP Male Thread
- Gun Colour: Black
- Tool Weight: 2.25kg
- Barrel Material: Anodised Aluminium
- Handle Material: Base Moulding, (PC), (ABS)
- Approval: CE
- Warranty: 1 Year
- Commodity Code: 90289090
- Origin: GB
- Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- High pressure to 100 psi
- Air exhaust reduces drips
- Large capacity
- Lightweight yet robust construction
- Quick cartridge attachment
