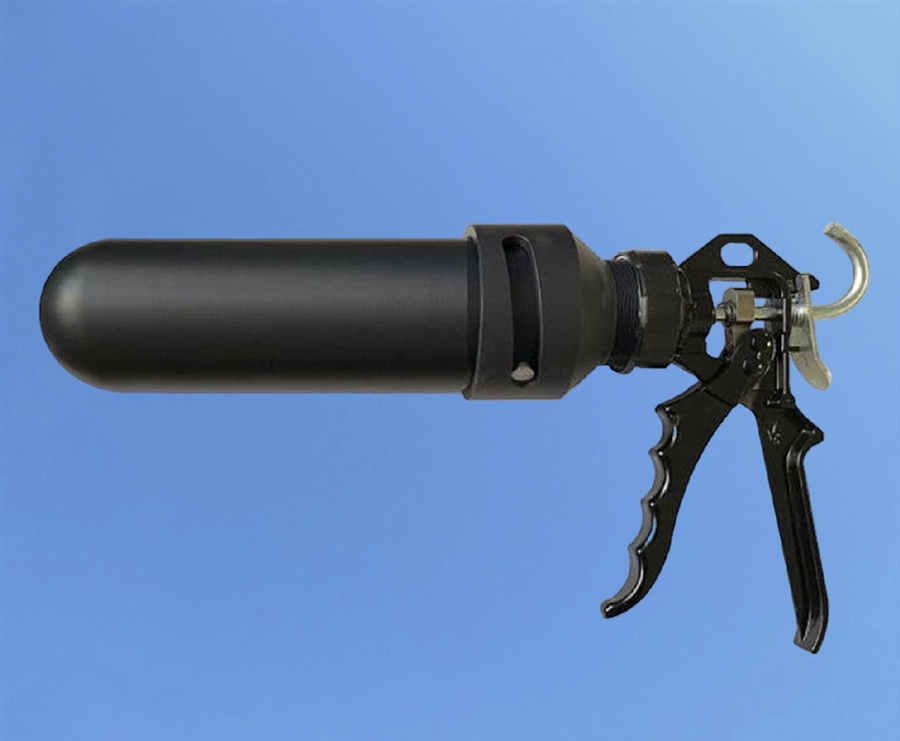

20oz Manual Cartridge Gun AD16-20
Product Code: AD16-20
Price: £395.00
Description
A manual metal cartridge dispenser gun with quick attach bayonet retainer, threaded adapter and trigger handle incorporating a quick release rod. Reverse action to reduce pressure build up and reduce drips or material oozing. Hook ring on the top to use with a counter balance for extra support if required. Use with all 20oz (591cc) cartridges, Semkits and Techkits. Apply controlled beads or potting of most compounds, silicones, sealants, RTV, grease, gels, long curing epoxies, mastics and potting compounds.
Load in a filled 20oz cartridge. Attach the retainer sleeve and twist on to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Cartridge gun spares and accessories are also available. Data sheet available on request. Use with 20 ounce size Semco PPG, Techcon and Nordson EFD cartridges.
SPECIFICATIONS:
- Trigger Ratio: 18:1
- Maximum Thrust: 2.5kN
- Barrel Length: 249.43mm
- Gun Colour: Black
- Tool Weight: 1.6kg
- Barrel Material: Anodised Aluminium
- Handle Material: Coated Steel
- Warranty: 1 Year
- Commodity Code: 90289090
- Brand: Adhesive Dispensing Ltd
- Trigger Ratio: 18:1
- Maximum Thrust: 2.5kN
- Barrel Length: 249.43mm
- Gun Colour: Black
- Tool Weight: 1.6kg
- Barrel Material: Anodised Aluminium
- Handle Material: Coated Steel
- Warranty: 1 Year
- Commodity Code: 90289090
- Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- High thrust ratio 18:1 force Large capacity
- Lightweight yet robust construction
- Quick cartridge attachment
