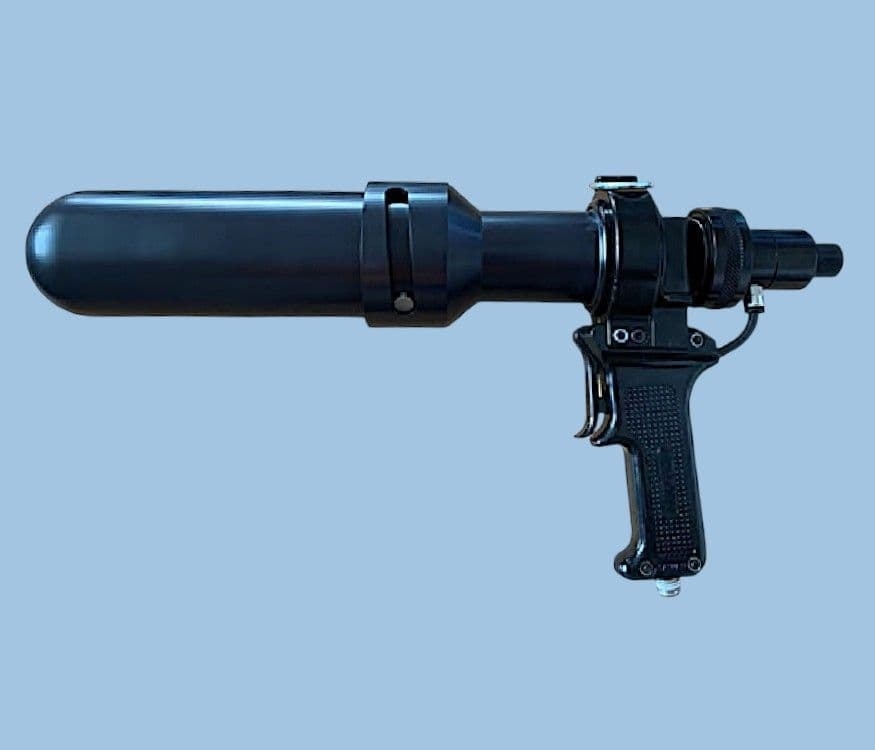

20oz Pneumatic Cartridge Applicator Gun AD110-20
Product Code: AD110-20
Price: £585.00
Description
A pneumatic metal
cartridge dispenser gun with quick attach bayonet retainer, threaded adapter and trigger handle incorporating an adjustable air regulator knob. Quick exhaust air release
to reduce pressure build up and reduce drips or material oozing. Hook ring on the top to use with a counter balance and support if required. Used with all 20oz (591cc) Techcon, Nordson EFD and Semco PPG cartridges, Semkits and Techkits.
Apply controlled beads, deposits or potting of most adhesives, fluids, sealants, RTV, grease, gels, long curing epoxies, mastics and potting compounds. Use at air pressure up to 100 PSI. Set the pressure using the adjustable knob for optimum flow rate.
Load in a filled 20oz cartridge. Replace the retainer and twist on tightly to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Cartridge gun spares and accessories are also available. Data sheet available here.
SPECIFICATIONS:
- Maximum Thrust: 2.5kN
- Barrel Length: 249.4mm
- Pressure: To 100 PSI
- Air Inlet: 1/4 Inch BSP Male Thread
- Gun Colour: Black
- Tool Weight: 1.95kg
- Barrel Material: Anodised Aluminium
- Handle Material: Base Moulding, (PC), (ABS)
- Approval: CE, REACH, RoHS
- Commodity Code: 90289090
- Origin: GB
- Brand: Adhesive Dispensing Ltd
- Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Apply controlled beads, deposits or potting of most adhesives, fluids, sealants, RTV, grease, gels, long curing epoxies, mastics and potting compounds. Use at air pressure up to 100 PSI. Set the pressure using the adjustable knob for optimum flow rate.
Load in a filled 20oz cartridge. Replace the retainer and twist on tightly to secure the cartridge. Attach a threaded nozzle or use a male luer lock adapter with any standard needle tips. Cartridge gun spares and accessories are also available. Data sheet available here.
SPECIFICATIONS:
- Maximum Thrust: 2.5kN
- Barrel Length: 249.4mm
- Pressure: To 100 PSI
- Air Inlet: 1/4 Inch BSP Male Thread
- Gun Colour: Black
- Tool Weight: 1.95kg
- Barrel Material: Anodised Aluminium
- Handle Material: Base Moulding, (PC), (ABS)
- Approval: CE, REACH, RoHS
- Commodity Code: 90289090
- Origin: GB
- Brand: Adhesive Dispensing Ltd
- Warranty: 1 Year
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- High pressure to 100 psi
- Air exhaust reduces drips
- Large capacity
- Lightweight yet robust construction
- Quick cartridge attachment
