8 Way Liquid/ Air Polypro Manifold TS98-8PP
Product Code: TS98-8PP
Price: £95.00
Description

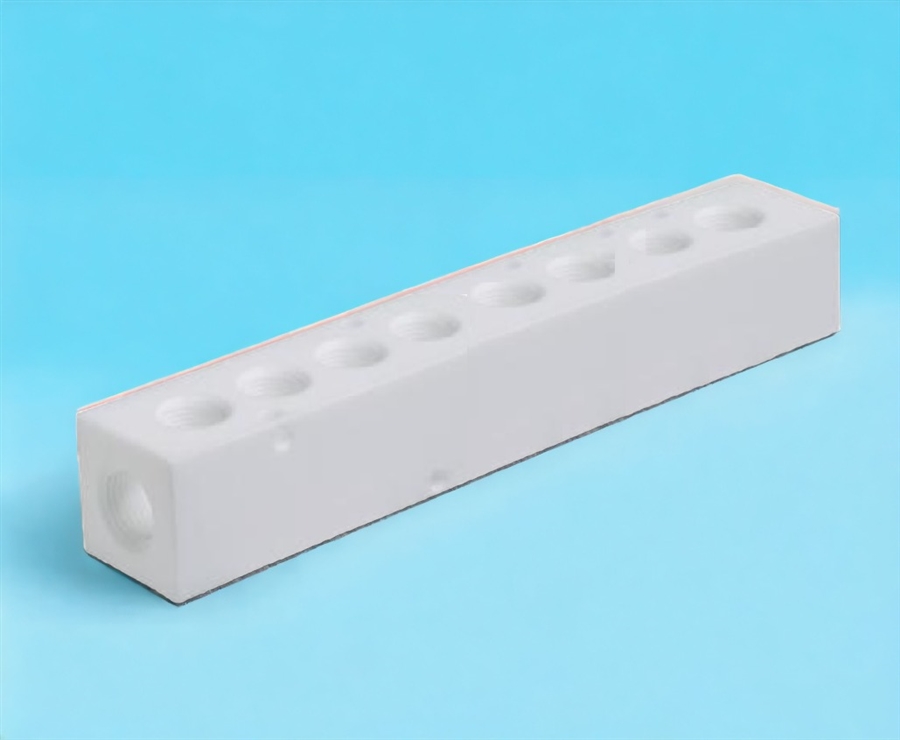

Polypropylene manifold with 8 outlets. Divert flow from one inlet up to 8 multiple outlets. If less outlet flows are required, plugs are supplied to seal off those ports not used. Ideal for feeding multiple metering valves or liquid flow from syringe barrels and pressure pots.
Maximum pressure 100 psi.
0.170" mounting hole.
Material: Polypro
Colour: Natural
Dimensions: 4-3/4" L x 1" W x 1" H
Number of Outlets:: Up to 8
Inlet Thread: 1/4"
Outlet Thread: 1/8"
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Maximum pressure 100 psi.
0.170" mounting hole.
Material: Polypro
Colour: Natural
Dimensions: 4-3/4" L x 1" W x 1" H
Number of Outlets:: Up to 8
Inlet Thread: 1/4"
Outlet Thread: 1/8"
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for adhesives and other fluids
- Small compact design
- Up to 100 psi safety
- Use with most feed tubing or luer lock fluid lines
- Silicone free materials
- 1 Year Warranty
- Allows up to 8 outlets from a single source
