6oz syringe barrel filling station 9150-6SFB

Description

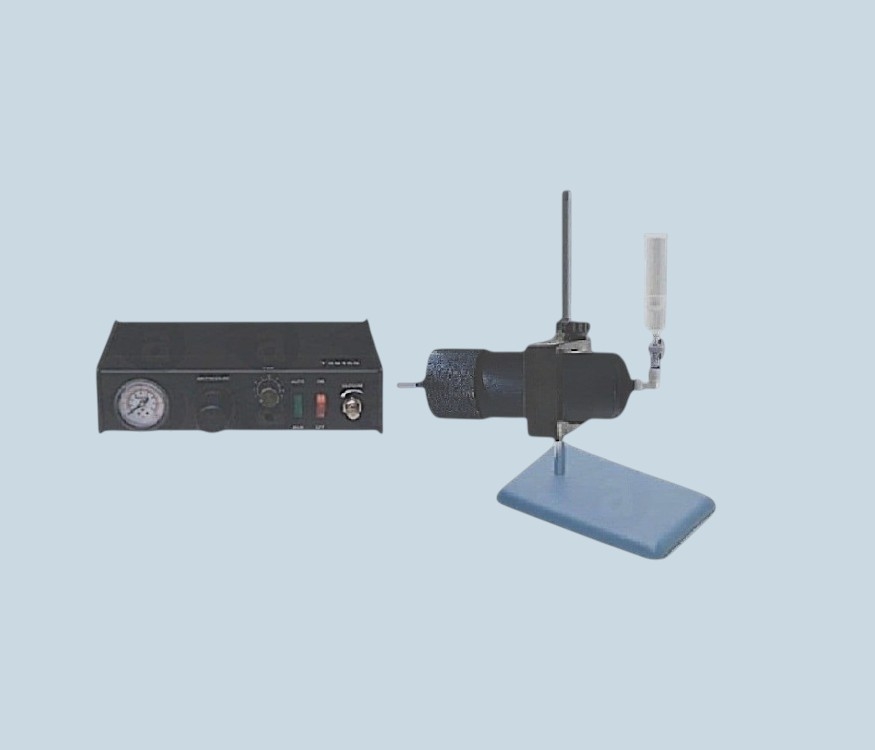

The model 9150-6SFB loads a barrel directly from a 6oz (177cc/ml) cartridge. This barrel loader includes a timed dispenser station allowing the operator to set the fill size, press the pedal for repeat filling amount to each syringe barrel. This takes away the need for the operator to judge the deposit size. The timer adjustment can be set to fill any syringe barrel size. High pressure dispenser up to 100 PSI.

The dispenser is controlled via the supplied foot switch. The dispenser is 110/220V power so can be used anywhere in the world. This kit is supplied ready to use including all fittings and sample syringe barrels. A fast and easy barrel loader to bottom fill syringes without excessive air entrapment. Use standard 6oz industrial cartridges.

The barrel attachment assembly is threaded to accept all luer lock barrels. This version of loader has a metal body retainer and cap.

Part ID: 9150-6SFB
Materials: Stainless Steel/ Nylon
Capacity: 6oz (177cc/177ml)
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

For 6oz cartridges
Includes adjustable bench mounted pneumatic dispenser
Bottom fills syringes to reduce air
Supplied with components
Safe for use up to 100 psi
Quick and easy setup
Industrial grade safe
For pastes, gels, silicones and sealants
