1/10 gallon Syringe Filling Station AD1211MS
Product Code: AD1211MS
Price: £305.00
Description

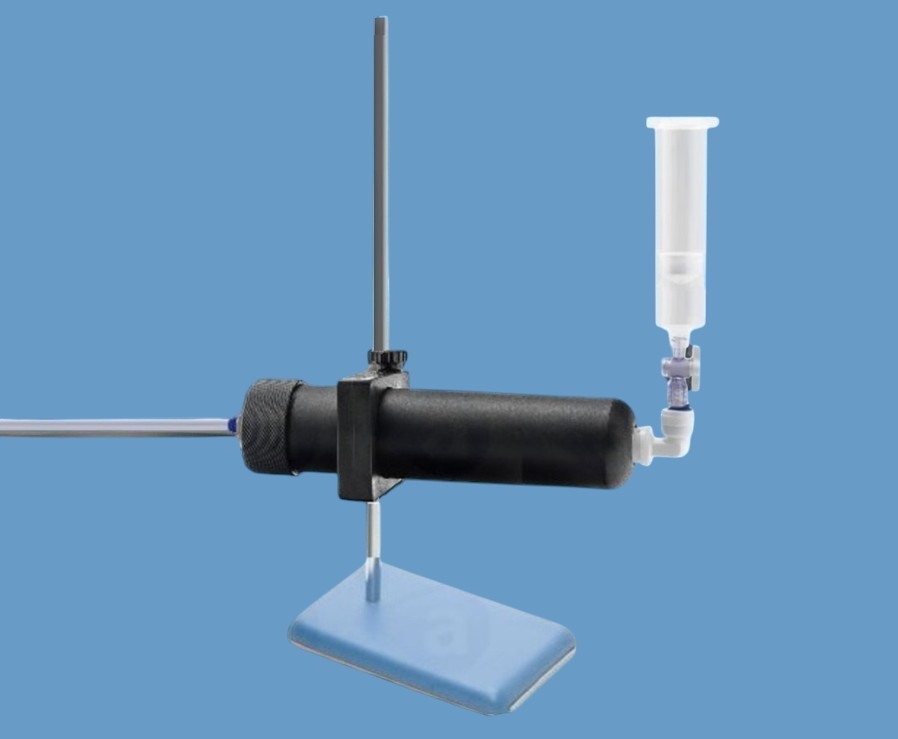

The model AD1211MS loads a barrel directly from a 1/10 gallon (310ml) caulking tube silicone sealant cartridge. This barrel loader is connected to an air regulator or air dispenser and set to a pressure suitable for the material but less than 100psi (7 bar). A manual lever valve between the cartridge outlet and syringe barrel can be used to seal flow. This system will run directly from a compressed air supply.
The barrel attachment assembly will accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal dispenser, the lever valve is removed and the dispenser controls ON/OFF mode.
The barrel attachment assembly will accept all luer lock barrels. This version of loader has a metal body retainer and cap. If used with a foot pedal dispenser, the lever valve is removed and the dispenser controls ON/OFF mode.
Part ID: AD1211MS
Materials: Steel/ Nylon
Capacity: 10oz/ 310cc/ 310ml
Weight: 1kg
Max Pressure: 100 PSI (7 Bar)
Warranty: 12 Months
Commodity Code: 90289090
Features
- For sizes 310ml, 1/10 gallon
- Bottom fills syringes to reduce air
- Supplied with component kits
- Safe for use up to 100 psi
- Quick and easy setup
- Industrial grade safe
- For pastes, gels, silicones and sealants
