Nozzle 6" Long x 1/8" ID Curved Bent pk/10
Product Code: PIR-618-8M
Price: £19.90
Description
Precision moulded 6" long nozzle x 1/8" (0.125") orifice. 1/4" NPT thread to fit all cartridges and spool valves. Nozzle can be cut down if required for larger outlet. If using with pre-filled sealant and silicone cartridge cartridge tubes that feature an external nozzle thread, use part number TSD931-296 adapter fitting. This will provide a leak free connection to the range of nozzles.

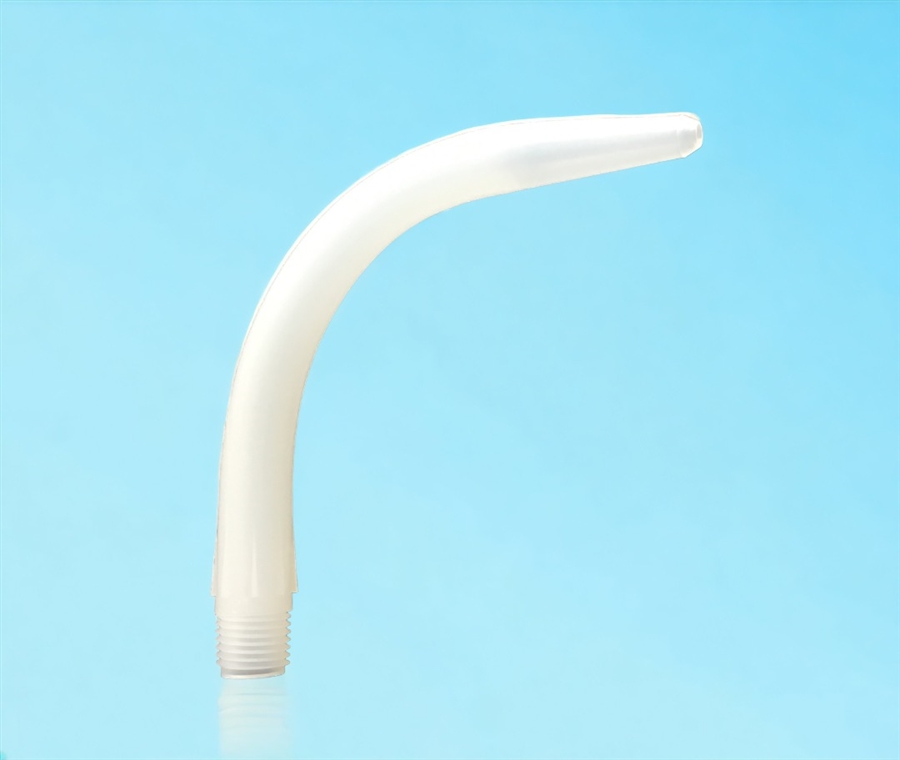

This version is supplied with a rounded bend curved shape. Useful for applications requiring materials to be dispensed at an angle or when applying to difficult to reach areas. Medium density polyethylene material. Supplied in sealed packs of 10.
Part ID: PIR-618-8M
Material: Polyethylene
Colour: Natural
ID: 1/8" (3.2mm)
Length: 6" (152.4mm)
Thread Connection: 1/4" NPT (Male)
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Brand: TSI
Pack Size: 10
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
This version is supplied with a rounded bend curved shape. Useful for applications requiring materials to be dispensed at an angle or when applying to difficult to reach areas. Medium density polyethylene material. Supplied in sealed packs of 10.
Part ID: PIR-618-8M
Material: Polyethylene
Colour: Natural
ID: 1/8" (3.2mm)
Length: 6" (152.4mm)
Thread Connection: 1/4" NPT (Male)
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Brand: TSI
Pack Size: 10
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard 1/4" NPT thread
- Silicone-free plastics
- Safe for use to 100 psi
- Can be cut to suit application
- Use on cartridges or valves
- Supplied in sealed packs
