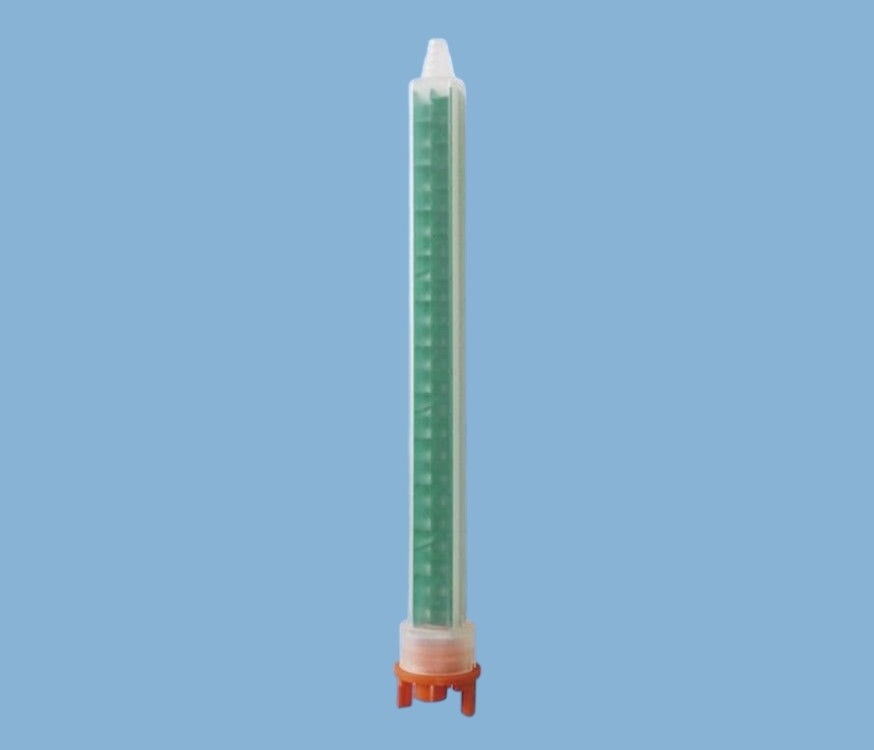

Mix Nozzle 10mm ID x 24 EL MFQX 10-24T pk/100
Product Code: MFQX10-24T
Price: £125.00
Description
Dual hole inlet, static mixer for 200ml and 400ml dual component F-System epoxy type cartridges. Stepped outlet. MFQ static mixers are used for dispensing adhesives from two-part 200 ml and 400 ml (dual) plastic F-Style cartridges. MFQ static mixers are green square Quadro products.
Mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants. Applications include electronic component potting, automotive, communications, automotive, aerospace, biodiesel, wind and solar energy devices and many others. F-Style mixers have two discrete inlet port holes that allow the F-style cartridge to deliver material into the mixer with minimal cross-contamination.
These mixer nozzles are suitable for 4:1 and 10:1 ratio two-component materials. They have green inner elements and are constructed of high-grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 10mm ID x 24 mixing elements. Use with F System dual cartridges only. All parts are industrial grade and silicone free.
Part ID: MFQX 10-24T - 116044
Material: Polypropylene
Colour: Natural Outer, Green Elements, Orange Cap
Inner Diameter: 10mm
Orifice Hole Size: 3.0mm
Length: 181mm
Volume in Nozzle: 14.92ml
Elements: 24
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Pack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Mixers can be used with epoxy, polyurethane, silicone, and a variety of other adhesives and sealants. Applications include electronic component potting, automotive, communications, automotive, aerospace, biodiesel, wind and solar energy devices and many others. F-Style mixers have two discrete inlet port holes that allow the F-style cartridge to deliver material into the mixer with minimal cross-contamination.
These mixer nozzles are suitable for 4:1 and 10:1 ratio two-component materials. They have green inner elements and are constructed of high-grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 10mm ID x 24 mixing elements. Use with F System dual cartridges only. All parts are industrial grade and silicone free.
Part ID: MFQX 10-24T - 116044
Material: Polypropylene
Colour: Natural Outer, Green Elements, Orange Cap
Inner Diameter: 10mm
Orifice Hole Size: 3.0mm
Length: 181mm
Volume in Nozzle: 14.92ml
Elements: 24
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Pack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
