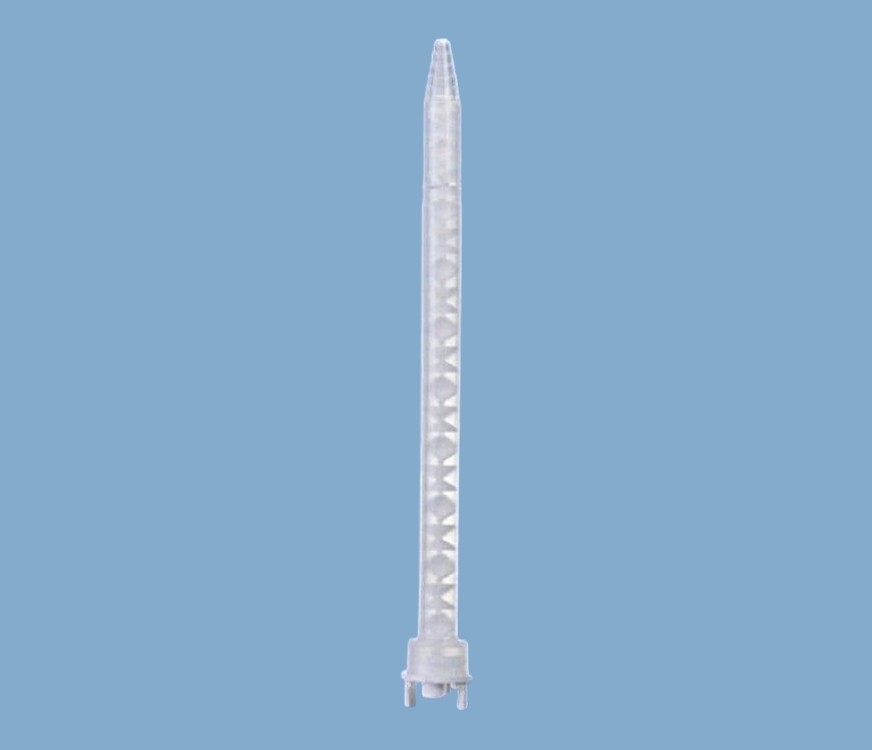

Mix Nozzle 10mm ID x 24 EL MFH 10-24T pk/100
Product Code: MFH10-24T
Price: £110.00
Description
Dual hole inlet, helical static mixer for 200ml and 400ml dual component F-System epoxy type cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 10.0mm ID x 24 mixing elements. Supplied in a sealed pack of 100 nozzles. Use with F System dual cartridges. All parts are industrial grade and silicone free.
Part ID: MFH 10-24T - 102469
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Orifice Hole Size: 3.0mm
Length: 283mm
Volume in Nozzle: 16.89ml
Elements: 24
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Pack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials. They have white inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 10.0mm ID x 24 mixing elements. Supplied in a sealed pack of 100 nozzles. Use with F System dual cartridges. All parts are industrial grade and silicone free.
Part ID: MFH 10-24T - 102469
Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Orifice Hole Size: 3.0mm
Length: 283mm
Volume in Nozzle: 16.89ml
Elements: 24
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Pack Size: 100
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
