Mix Nozzle 10mm ID x 18 EL MCHX 10-18T pk/100
Product Code: MCHX-10-18T
Price: £140.00
Description

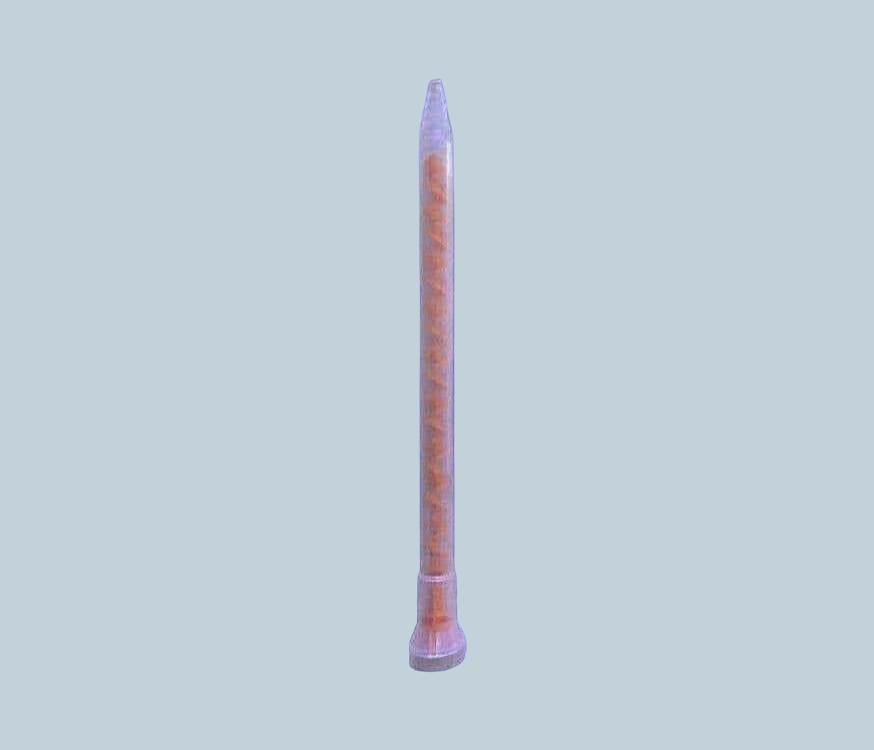

These mixer nozzles are suitable for two-component materials. They have orange inner elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges 4:1 or 10:1. All items are industrial grade safe and silicone free. 10mm ID x 18 mixing elements.
Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges 4:1 or 10:1 ratios. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
Part ID: MCHX 10-18T - MCHX10-18T - 102445
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 10mm
Outer Diameter: 14mm
Nozzle Tip Outlet: 3.0mm
Length: 215.0mm
Retained Volume: 12.0ml
Elements: 18
Retaining Method: 7/8"-9 Thread
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Bell mouth inlet, helical static mixer for 200ml and 400ml dual component epoxy type cartridges 4:1 or 10:1 ratios. Stepped outlet that can be cut back to increase orifice size and increase flow rates or used with luer adapter and any luer lock needle tips.
Part ID: MCHX 10-18T - MCHX10-18T - 102445
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 10mm
Outer Diameter: 14mm
Nozzle Tip Outlet: 3.0mm
Length: 215.0mm
Retained Volume: 12.0ml
Elements: 18
Retaining Method: 7/8"-9 Thread
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
