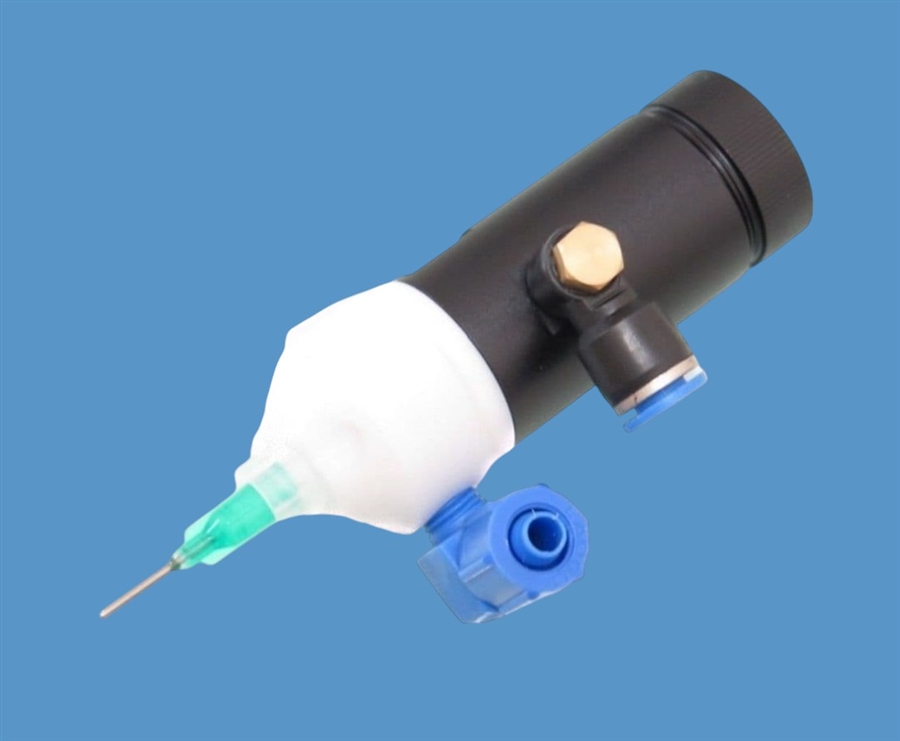

Air Operated Teflon Diaphragm Valve TS5622VA
Product Code: AD5622VT
Price: £495.00
Description
The AD5622 dispense valve accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/ close stroke 0.13 to 0.64 mm (0.005 Inch to 0.025 Inch) allows for a very fast response with positive shutoff. Wetted components are made of inert materials.
This version has Teflon wetted fluid housing and diaphragm. Valve open time can be as short as 15 milliseconds. Deposit rate can be as high as 500 shots per minute. This valve takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. The compact design allows for easy installation in most areas or it can be bench mounted for hands free operator control.
A typical setup for this valve usually includes a digital controller and small pressure pot. Model AD5622VT with PTFE Teflon polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. This valve is very simple to operate using a pneumatic dispenser/ controller. Supplied with air hose, input fittings, tip adapter, mounting bracket, tip selection and user guide.
Part ID: AD5622VT (TS5622VA)
Wetted Materials: PTFE Teflon, UHMW
Body Material: Aluminium
Size: 87mm L x 28mm Diameter
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Repeatability: +/- 0.30%
Cycle Rate: Up to 500 Cycles/ Minute
Flow Rate (Water): 5250ml/minute @ 70 psi
Min Shot Size: 0.0075 cc/ ml
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet Thread: 1/8 Inch NPT
Material Outlet: M5 (Luer Lock Fitting)
Mounting Thread: M5
Warranty: 1 Year
Commodity Code: 84248940
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
This version has Teflon wetted fluid housing and diaphragm. Valve open time can be as short as 15 milliseconds. Deposit rate can be as high as 500 shots per minute. This valve takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. The compact design allows for easy installation in most areas or it can be bench mounted for hands free operator control.
A typical setup for this valve usually includes a digital controller and small pressure pot. Model AD5622VT with PTFE Teflon polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. This valve is very simple to operate using a pneumatic dispenser/ controller. Supplied with air hose, input fittings, tip adapter, mounting bracket, tip selection and user guide.
Part ID: AD5622VT (TS5622VA)
Wetted Materials: PTFE Teflon, UHMW
Body Material: Aluminium
Size: 87mm L x 28mm Diameter
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Repeatability: +/- 0.30%
Cycle Rate: Up to 500 Cycles/ Minute
Flow Rate (Water): 5250ml/minute @ 70 psi
Min Shot Size: 0.0075 cc/ ml
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet Thread: 1/8 Inch NPT
Material Outlet: M5 (Luer Lock Fitting)
Mounting Thread: M5
Warranty: 1 Year
Commodity Code: 84248940
Brand: Adhesive Dispensing Ltd
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Ideal for cyanoacrylates, primers and anaerobics
- High precision solution supplied complete
- Repeat dots, lines or potting of most liquids
- Adjustable stroke control for fine tuning of flow
- Syringe feed, cartridge feed or pressure pot
- Supplied with fluid lines and tip kit
- Easy bench mount, machine mount or robot mount
- Simple to control using TS550R, TS250 or TS350
