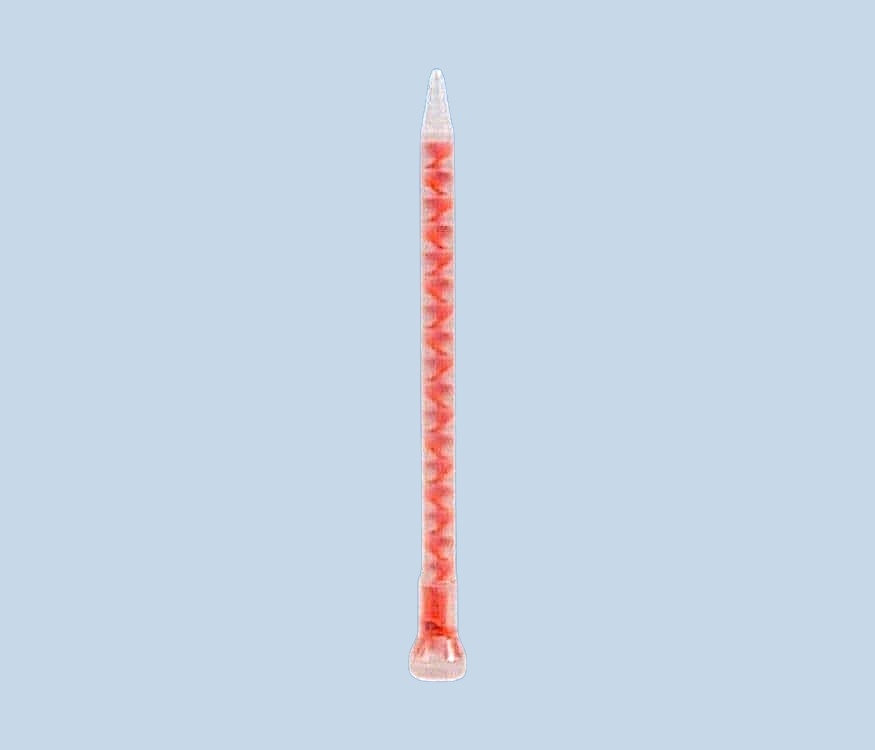

Mix Nozzle 8mm ID x 24 EL MCHX 08-24T pk/100
Product Code: MCHX-08-24T
Price: £135.00
Description
MCHX static mixers are used for dispensing adhesives from two-part 200 ml, 400 ml dual component cartridges. Available ratios are 4:1 and 10:1. These mixers are attached using a retaining nut, usually supplied with the cartridge. Static mixers are often referred to as nozzles. Mixers can be used with epoxy, polyurethane, silicone, potting compounds and a variety of other adhesives and sealants.
Bell mouth inlet, helical static mixer for 200ml and 400ml cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates.
These mixer nozzles are suitable for two-component materials. They have orange elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 8.0mm ID x 24 mixing elements. Supplied in packs of 100 nozzles.
Bell mouth inlet, helical static mixer for 200ml and 400ml cartridges. Stepped outlet that can be cut back to increase orifice size and increase flow rates.
These mixer nozzles are suitable for two-component materials. They have orange elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 8.0mm ID x 24 mixing elements. Supplied in packs of 100 nozzles.
Part ID: MCHX08-24T - MCHX 08-24T - 102443
Material: Polypropylene
Colour: Natural Outer, Orange Elements
Inner Diameter: 8.0mm
Outer Diameter: 12.0mm
Length: 230mm
Volume in Nozzle: 8.5ml
Elements: 24
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Origin: Europe
Brand: Sulzer Mixpac Medmix
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard for 200/400ml cartridges
- Silicone-free plastics
- Safe for use to 100 psi
- Stepped end
- Use on dual cartridges
- Supplied in sealed packs
