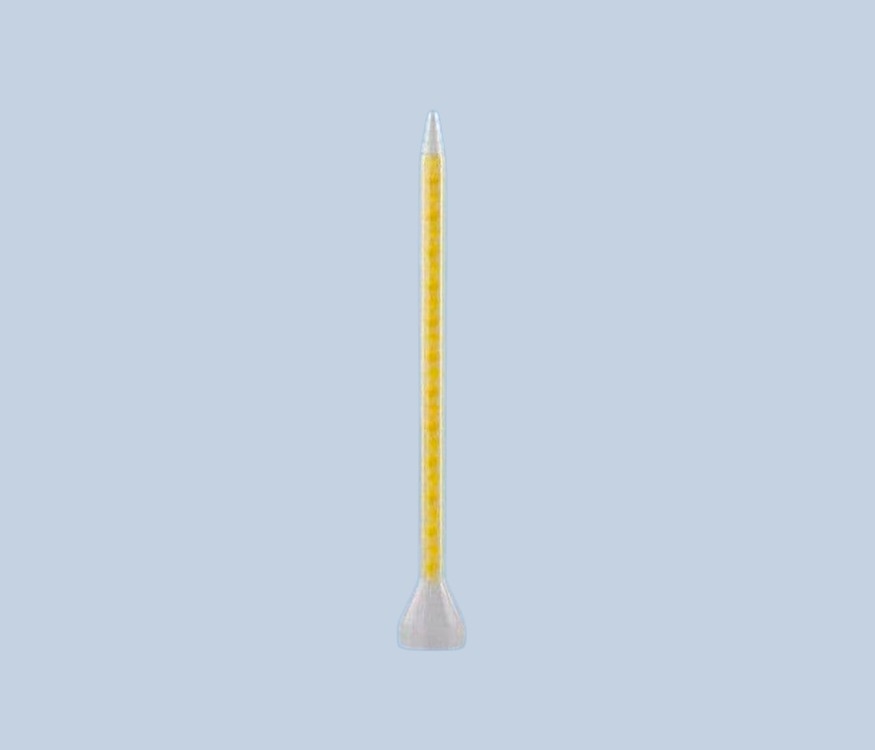

MS-Series (Yellow) Static Mixers for Machine Mix Systems

Static Mixers attach to both metering, mixing, and dispensing machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

Part ID: MS 05-24T - 102503
Material: Polypropylene
Colour: Natural Outer, Yellow Elements
Inner Diameter: 5mm (0.197 Inch)
Outer Diameter: 8mm (0.315 Inch)
Mixer Length: 149mm (5.870 Inch)
Nozzle Tip Diameter: 1.5mm (0.1 Inch)
No. of Elements: 24
Retaining Method: 7/8"-9 Thread
Material Volume: 2.3ml
Max. Pressure: 33 BAR
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix
Pack Size: 100 Pieces

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for mix machines
Silicone-free Safe for use to high pressure 33 BAR Stepped nozzle end
Supplied in sealed packs of 100
