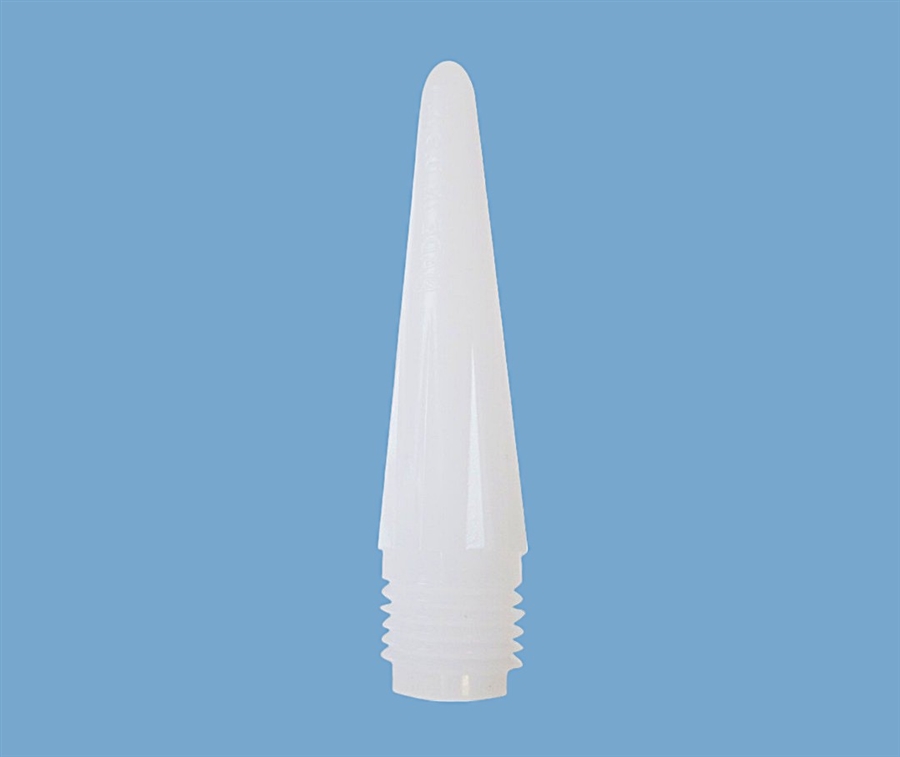

Nozzle 2.5" Long x 1/16" ID TS216 pk/1000
Product Code: TS216-1000
Price: £459.00
Description
Precision moulded 1/4" NPT thread to fit all cartridges and spool valves. Nozzle can be cut down if required. If using with pre-filled sealant and silicone cartridge tubes that feature an external nozzle thread, use part number TSD931-296 adapter fitting. This will provide a leak free connection to the range of nozzles.
Natural high density polyethylene (HDPE) material. Supplied in sealed packs. Nozzle 2.5" X 1/16" (63.5mm x 1.59mm) orifice. The TS216-HO nozzle series is newly added to the portfolio presenting the continuous improvement to meet market and application demand.
The HO- High Output - nozzle series has the same external dimensions and orifice diameter as the standard series nozzle, however, the internal fluid path is designed with minimal flow restriction to provide the highest fluid throughput possible. Also available in Low Density (LD) Polyethylene.
- Optimum internal fluid path design - provides highest fluid throughput
- Reduces operating time - generates higher yield
- Lower air pressure requirement - reduces operating cost and enhances safety
- Easy for manual tip cutting process - reduces operating time, cost and enhances safety
- Requires less bending force - reduces operating time, cost and enhances safety
- High Density (HD) Polyethylene
Part ID: TS216-1000
Material: High Density Polyethylene (MDPE)
Colour: Natural
ID: 1/16" (1.59mm)
Length: 2.5" (63.5mm)
Connection: 1/4" NPT Male Thread
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 84679200
Brand: TSI
Pack Size: 1000
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Natural high density polyethylene (HDPE) material. Supplied in sealed packs. Nozzle 2.5" X 1/16" (63.5mm x 1.59mm) orifice. The TS216-HO nozzle series is newly added to the portfolio presenting the continuous improvement to meet market and application demand.
The HO- High Output - nozzle series has the same external dimensions and orifice diameter as the standard series nozzle, however, the internal fluid path is designed with minimal flow restriction to provide the highest fluid throughput possible. Also available in Low Density (LD) Polyethylene.
- Optimum internal fluid path design - provides highest fluid throughput
- Reduces operating time - generates higher yield
- Lower air pressure requirement - reduces operating cost and enhances safety
- Easy for manual tip cutting process - reduces operating time, cost and enhances safety
- Requires less bending force - reduces operating time, cost and enhances safety
- High Density (HD) Polyethylene
Part ID: TS216-1000
Material: High Density Polyethylene (MDPE)
Colour: Natural
ID: 1/16" (1.59mm)
Length: 2.5" (63.5mm)
Connection: 1/4" NPT Male Thread
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 84679200
Brand: TSI
Pack Size: 1000
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Industry standard 1/4" NPT thread
- Silicone-free plastics
- Safe for use to 100 psi
- Can be cut to suit application
- Use on cartridges or valves
- Supplied in sealed packs
