Description
Premier dispensing syringe barrels are silicone and chloride- free and designed to work with dispensing equipment - either manually or on a pneumatic dispenser.
The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double helix luer lock for secure dispense tip attachment. Supplied in sealed packs.

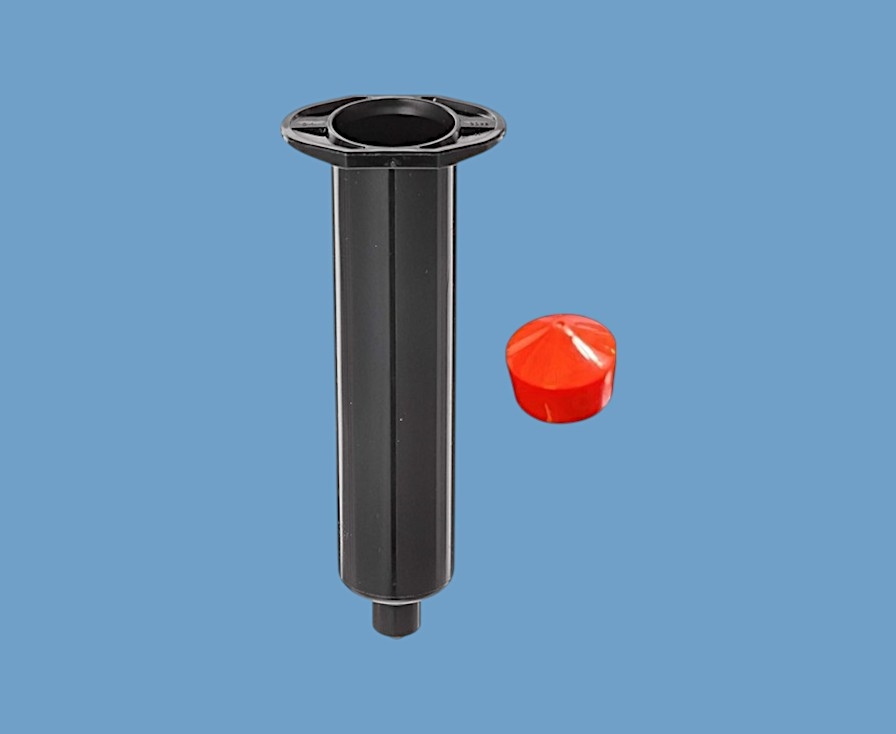

Black opaque barrel for UV cure adhesives. Maximum operating pressure is 100 psi (6.9bar). Red polyethylene flat walled pistons supplied in the same box. Use this piston for pastes, gels and high viscosity materials. Not for use with low viscosity liquids. Use barrel/piston set part 930-BW for dispensing all low to medium viscosity UV cure adhesives. Pricing is for a kit of 50 barrels and 50 pistons in the box.
Materials Polypropylene (barrel) Polyethylene (Piston)
Capacity 30cc (30ml)
Length 4.66" - 118.36mm
Outer Diameter 0.99" - 25.27mm
Inner Diameter 0.89" - 22.63mm
Colour Black (Barrel) Red (Piston)
Brand: ADL
Commodity Code: 39269097
Pack Size: 50 Barrels, 50 Pistons
Lead Time: In Stock
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Silicone and chloride free plastics
- Industrial grade safe to 100 psi
- Resistant to aggressive fluids and solvents
- Wide flanges for secure air attachment
- Luer lock tip attachment on barrel
- Black barrels for UV cure adhesives
- Flat wall piston for thick pastes/ stringy materials only
- Zero draft inner walls for precision
