1/10 Gallon Cartridge Retainer System 580091H-A
Product Code: 580091H-A
Price: £105.00
Description

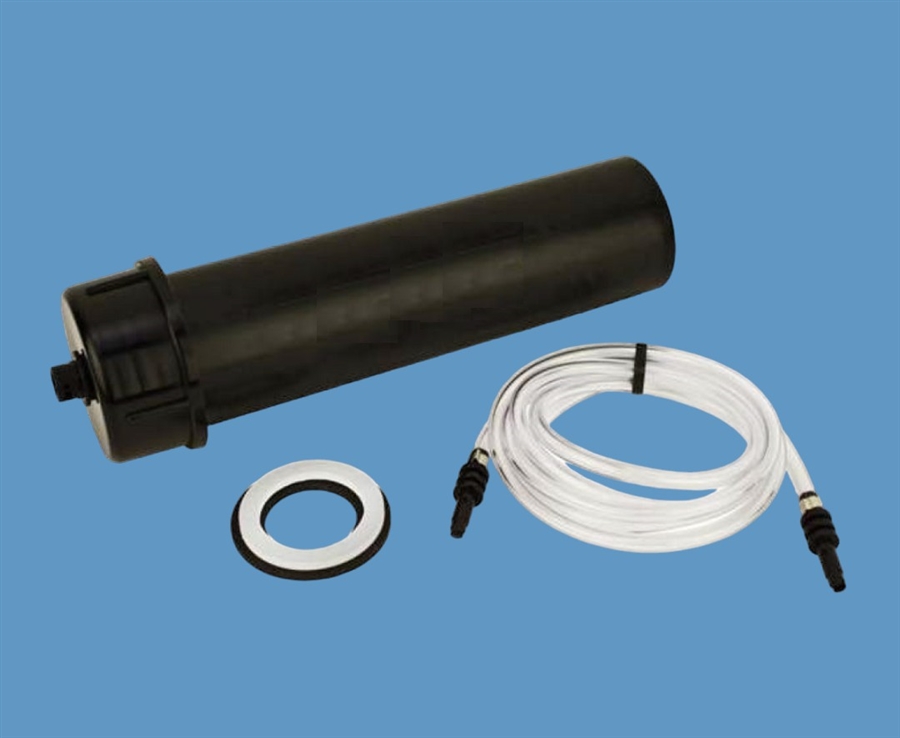

10oz (310ml) size plastic lightweight cartridge retainer body for use with a euro 310ml size sealant cartridge or 1/10 gallon tube. Supplied with threaded bezel cap and airline hose with quick connect. ** Please note new colour is now black.
Accepts all 310ml cartridges as well as standard 310ml size pre-filled silicone/ sealant caulk tubes. The end cap is unscrewed and the cartridge placed inside. Allows materials to be fed under pressure up to 65 psi (4.5 bar). Can also be used as a pneumatic cartridge feed reservoir to our dispensing valves or for dispensing silicones and sealants direct from 310ml tubes.
Part ID: 580091H-A
Materials: Nylon/ Polypropylene
Colour: Black
Max Pressure: 65 PSI (4.5 BAR)
Outer Diameter: 56mm
Inner Diameter: 52mm
Length: 220mm
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Accepts all 310ml cartridges as well as standard 310ml size pre-filled silicone/ sealant caulk tubes. The end cap is unscrewed and the cartridge placed inside. Allows materials to be fed under pressure up to 65 psi (4.5 bar). Can also be used as a pneumatic cartridge feed reservoir to our dispensing valves or for dispensing silicones and sealants direct from 310ml tubes.
Part ID: 580091H-A
Materials: Nylon/ Polypropylene
Colour: Black
Max Pressure: 65 PSI (4.5 BAR)
Outer Diameter: 56mm
Inner Diameter: 52mm
Length: 220mm
Warranty: 1 Year
Commodity Code: 90289090
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Robust construction
- Compatible with all 310ml (1/10 gallon) cartridges
- Use with our cartridges and plungers part TS110CKIT or with filled sealant caulk tubes
- Resistant to aggressive fluids and solvents Rated for use to 65 psi pressure
- Supplied in sealed packaging ready to use
- Includes air hose and fittings to connect to any pneumatic dispenser
