Description

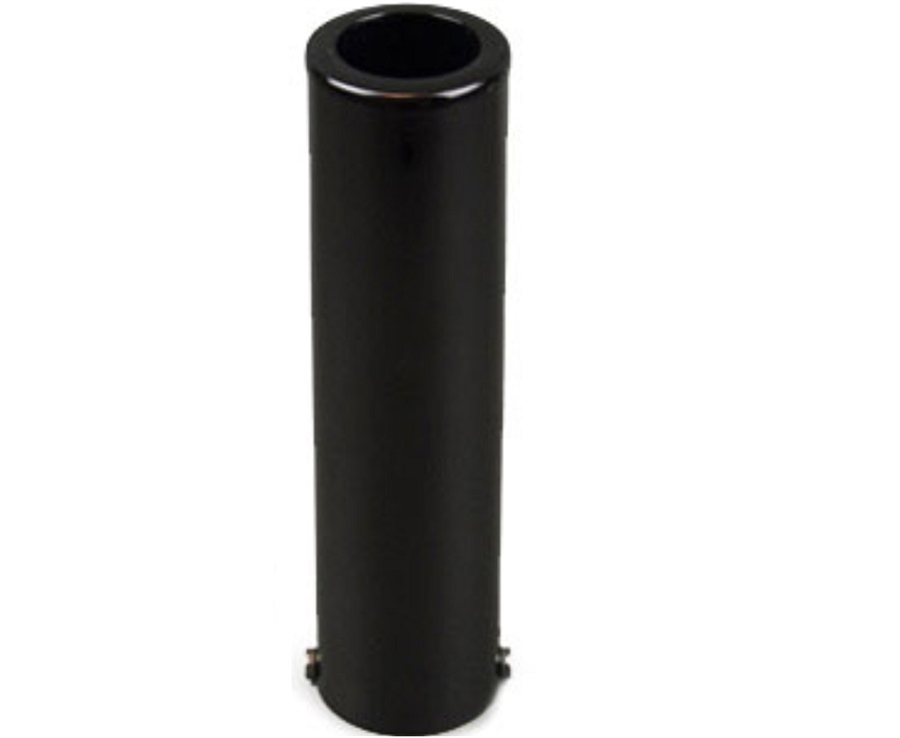

A 310ml (10oz) size cartridge retainer body for use with any sealant cartridge (approximately 215mm length). Use with air cap (ordered separately). Accepts all industry standard 10oz cartridges as well as 310ml size pre-filled silicone/ sealant cartridges. Use with 918-000-036 air cap (shown in image 2) or with G110 air gun handle. Bayonet push and twist fitting to the air cap or gun handle. Safe for use to 100 psi.
G Series
retainers and cap accommodate, in particular, 20oz/ 591ml and 1/10
gallon/ 310ml cartridges. Smaller metal retainers that adapt the G Series
retainer cap, for use with the smaller diameter cartridges, are also
available. Air tubing is factory pre-assembled with a quick connect
bayonet adapter for ease of use. Can withstand pressures up to 100psi (6.9bar) for the
aluminium retainer. * Please note the manufacturer has made this range obsolete.
Part ID: 110-2
Materials: Aluminium/ Steel/ Nylon
Colour: Black
Length: 215mm
OD: 55.69mm
Outlet Hole ID: 36.67mm
Max Pressure: 100 PSI
Connection: Bayonet
Commodity Code:
Warranty: 1 Year
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Robust construction
- Compatible with all 10oz cartridges
- Resistant to aggressive fluids and solvents
- Safe for use to 100 psi pressure
- Supplied in sealed packaging
