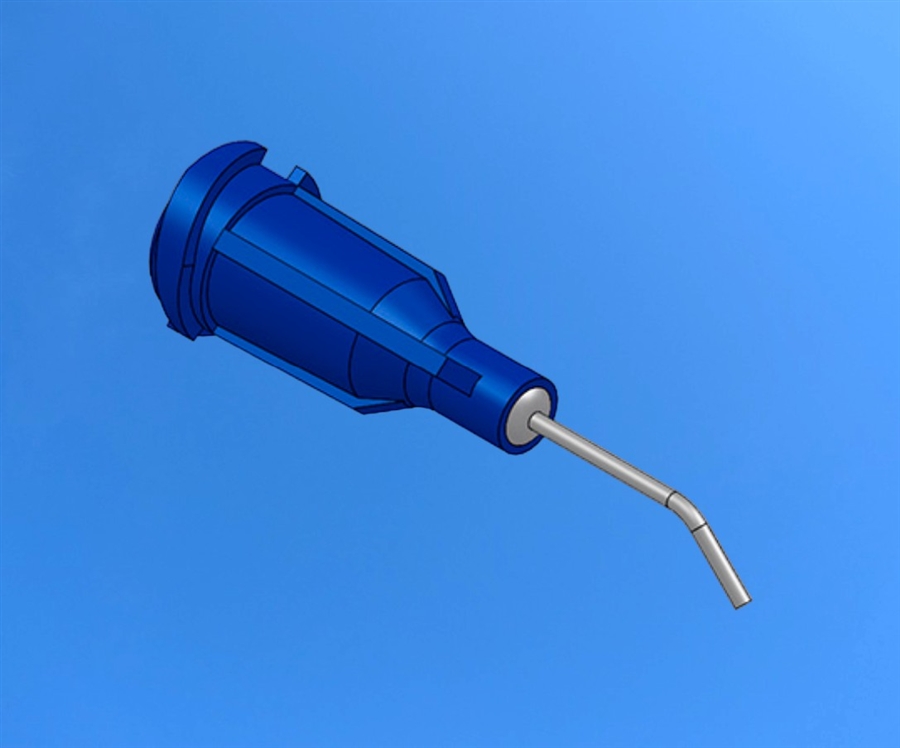

22 Gauge 45 Bend Tip Blue TE722050B45PK
Product Code: TE722050B45PK
Price: £22.60
Description
Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A bent stainless shaft length of 0.50". UV filter hub protects UV cure adhesives.
The TE needle series consist of a stainless-steel shaft with a double helix polypropylene hub. This premier line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow. Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi. Use these tips for applying most liquids for high precision controlled dispensing.
Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. These tips ship direct from stock.
Part ID: TE722050B45PK
Material: Polypro/ Stainless Steel
Colour: Blue Hub
ID: 0.016" (0.41 mm)
OD: 0.028" (0.71 mm)
Tube Length: 0.50" - 12.70 mm
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39174000
Brand: Techcon
Pack Size: 50
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing
- 0.5" length
- Silicone free safe plastics
- Safe for use up to 100 psi
- Double helix luer lock colour coded hubs
- UV filter plastic hubs
- For all fluids, adhesives and solvents
