21G 1" Long Tip Crimped TS21-1 pk/50
Product Code: TS21-1
Price: £13.50
Description

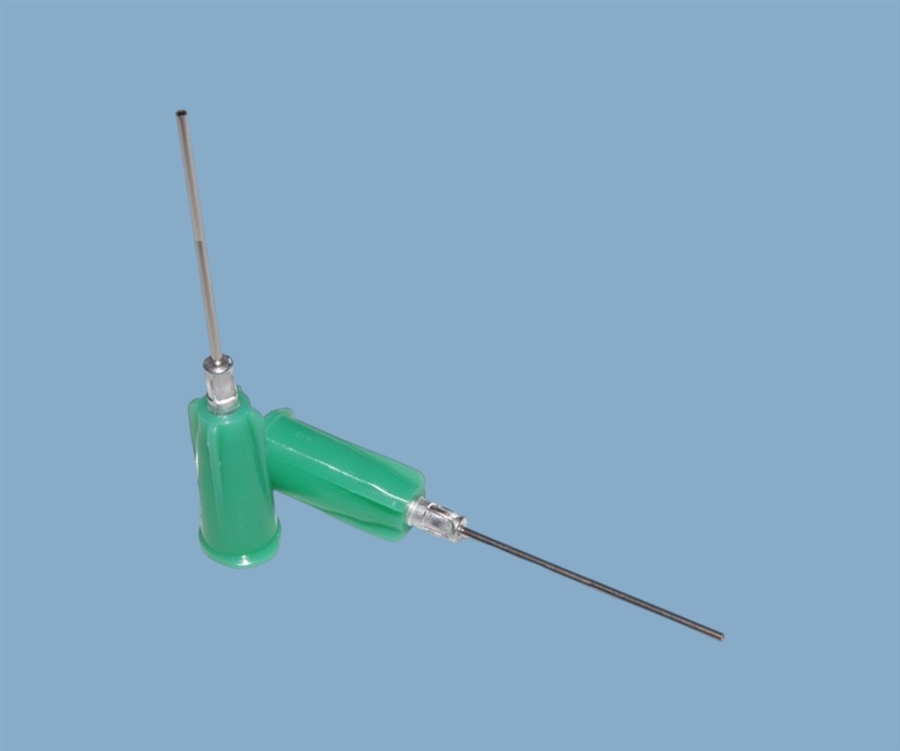

Precision Dispensing Tips 1.0" long stainless steel tube.
The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polypropylene hubs. Moulded hub colours correspond to gauge size. 1.0" (25.4mm) long tube.
All TS Series tips secure to syringe barrels and correspond to the luer lock specification. Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Crimped tips are ideal for use with solvents as the bond between hub & steel tube is crimped, not glued. Supplied in a sealed box of 50 tips.
Part ID: TS21-1
Materials: Polypropylene/ Stainless Steel Hub
Colour: Green
Inner Diameter: 0.020" - 0.51mm
Outer Diameter: 0.032" - 0.81mm
Tube Lengths: 1.00" - 25.40 mm
Max. Pressure: 100 PSI
Details: Industrial Grade, Silicone Free, Chloride Free
Commodity Code: 84249020
Brand: TSI
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polypropylene hubs. Moulded hub colours correspond to gauge size. 1.0" (25.4mm) long tube.
All TS Series tips secure to syringe barrels and correspond to the luer lock specification. Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes. Crimped tips are ideal for use with solvents as the bond between hub & steel tube is crimped, not glued. Supplied in a sealed box of 50 tips.
Part ID: TS21-1
Materials: Polypropylene/ Stainless Steel Hub
Colour: Green
Inner Diameter: 0.020" - 0.51mm
Outer Diameter: 0.032" - 0.81mm
Tube Lengths: 1.00" - 25.40 mm
Max. Pressure: 100 PSI
Details: Industrial Grade, Silicone Free, Chloride Free
Commodity Code: 84249020
Brand: TSI
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Precision burr free tubing
- 1" length
- Silicone free Safe for use up to 100 psi
- Luer lock colour coded hubs
- Crimped shaft to hub
- Packs of 50 or bulk on request
- Compatible with all fluids
