Hand Lever Manual Pinch Tube Wand ADMPW
Hand Lever Manual Pinch Tube Wand ADMPW
ADMPW

Price: £145.00 Exc VAT


Availability:: 5-7 Days
Product Code: ADMPW
Qty:

Description Technical Specs More Information

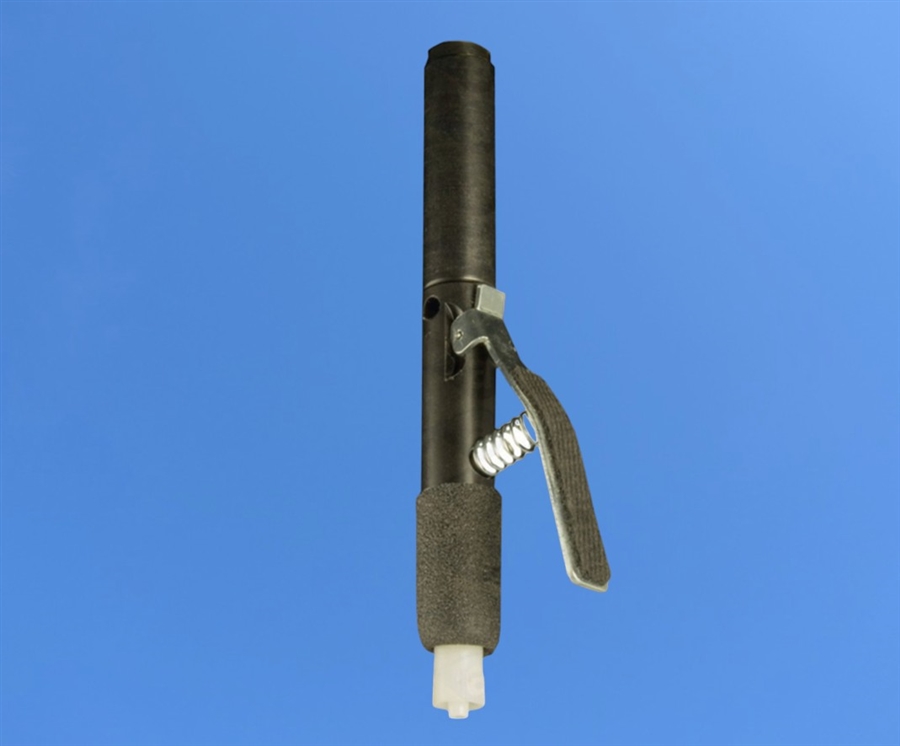

This manual dispensing wand has a flexible silicone pinch tube and is excellent for solder masks and other flow-able materials. We do not recommend using it with cyanoacrylate (CA) glues however. The wand requires 50 psi or less to dispense. The front of the wand has a Luer Lock male fitting, allowing use of any size dispensing tip. The length of this unit is 6.73" (170.9 mm) and the diameter is 0.63" (16 mm).

We recommend this valve for dispensing water based adhesives, solvents, solder masks, low viscosity epoxies, inks, paints, primers, activators, wood glues, craft glues, anaerobic adhesives & many more. Because this valve uses plastic tubes that can be order per ft, it is maintenance free and does not require time spent cleaning or purging. Fluid can be fed via a pressure pot, cartridge reservoir or syringe barrel.

Part ID: ADMPW
Size: 170.9mm L x 16mm D
Weight: 36 g
Wetted Parts: Silicone
Viscosity Range: 1 to 45,000 CPS
Max Fluid Pressure: 50 psi ( 3 Bar)
Material Outlet: Male Luer Lock
Valve Mounting: n/a
Colour: Black
Warranty: 1 Year
Commodity Code: 90289090

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features
  • Ideal for solder masks, UV cure and anaerobics
  • Zero cleanup with replaceable pinch tubes
  • Low cost dispensing solution supplied complete
  • Controlled deposits, lines or potting of most liquids
  • Syringe feed, cartridge feed or pressure pot
  • Supplied with pinch tubes, fluid lines and tip kit
  • Hand operated
  • 1 Year Warranty
