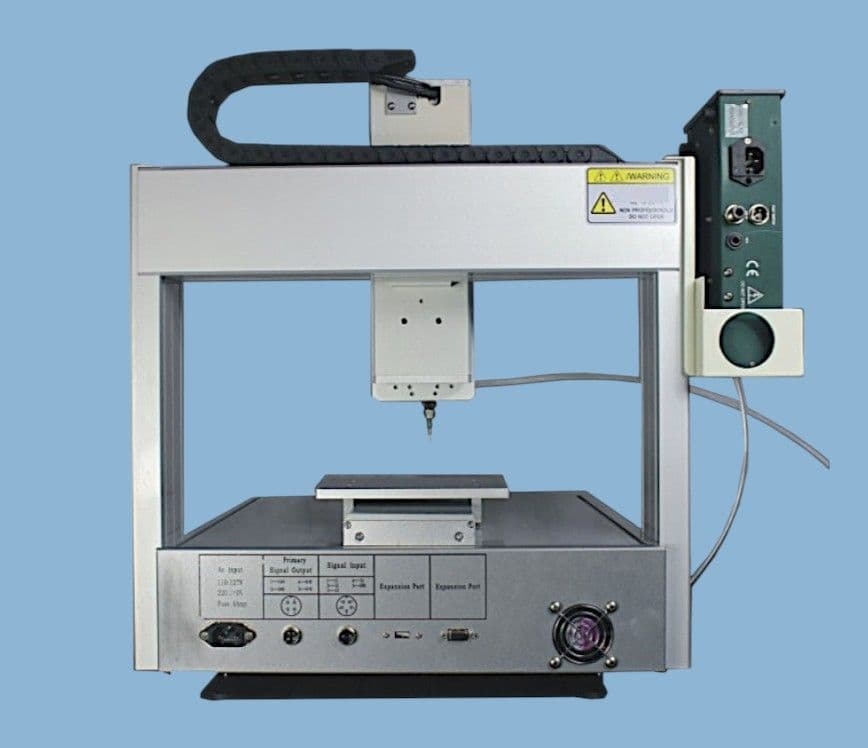

A large sized desktop robot with a working area of 600 x 600mm. Its an ideal robot for automating a dispensing application that may be currently performed manually. Programming is by teach-pendant, using the industry's leading dispensing software that walks the user through step-by-step instructions to create a sophisticated dispensing operation in minutes.

The 600 series bench top dispensing robots are a cost effective solution combining high level programming technology with precision placement engineering. The 600 series are a compact, heavy duty design, which are easily programmed using simple step-by-step instructions. A robust cast construction provides additional stability when working to fine tolerances. Systems will dispense virtually any assembly fluid and adhesive or liquid paste, from thin, watery liquids and solvents to thick gels, silicones and brazing pastes. All are applied quickly, accurately to reduce waste, mess and hand fatigue.

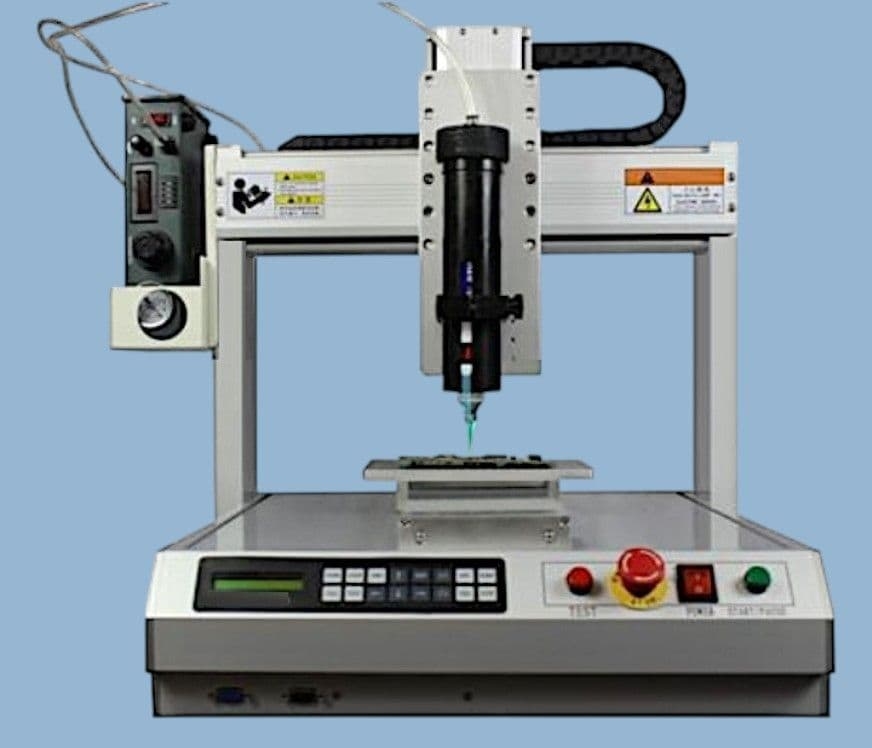

This version is setup for using 300ml/310ml silicone and sealant caulking tube cartridges. The material cartridge is placed inside the metal retainer for controlled application.

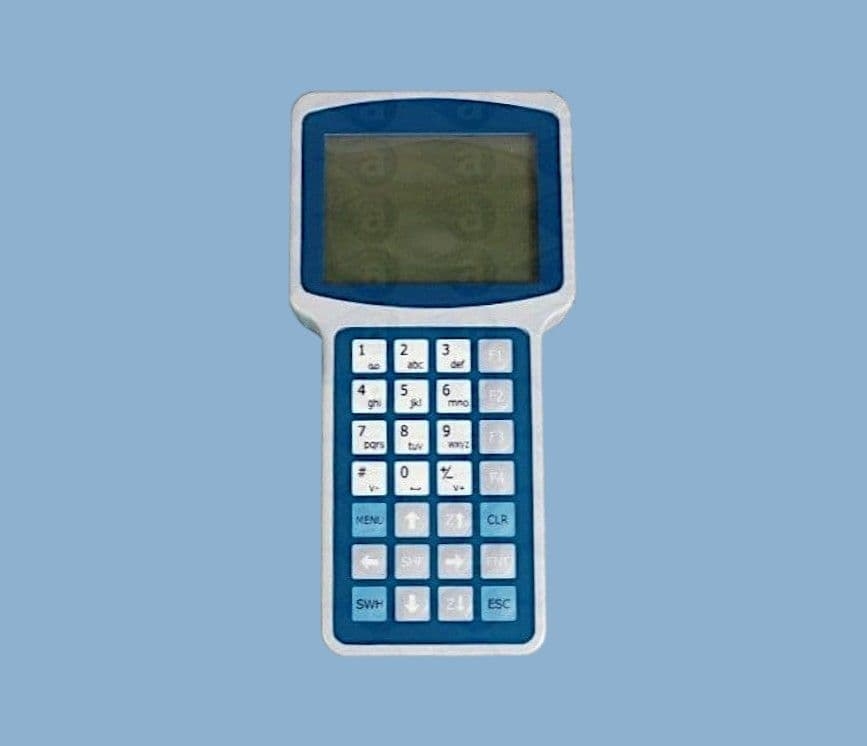

Programming is simple with easy to follow english language instructions. Commands are followed and responses entered by a Teach Pendant. An LCD display prompts the user for a data input and once confirmed, automatically displays the next instruction. By this method a program can be created quickly and simply. All machines include 4 I/O signal interface for connection to tools and controllers. Supplied with a timed pneumatic dispenser, I/O cable, teach pendant, power cables, airline hoses, cartridge mounting bracket, 310ml metal cartridge retainer body, tip pack, user guide.

---

X/Y/Z Work area (mm): 600 / 600 / 100
Worktable load / Tool: 15 kg. / 6 kg.
Max. Speed X&Y / Z: 800 / 350 (mm/sec)
Repeatability: +/- 0.02mm/ Axis
Resolution: 0.01mm/ Axis
Data Memory: 999 Programs
4,000 points / program
Drive Sys. / Stepping motor: 3-phase
Motion Control: PTP & CP
Teaching Method: Teach Pendant
I/O signals: 4 inputs / 4 outputs
External Interface: RS232
Power Supply: AC 110-220V
Dimensions (WxDxH): 800 x 848 x 629
Weight: 55kg

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Supplied as a complete package:

1 x Base Robot with power cord
1 x LCD Teach Pendant with cable
1 x CE Compliance kit - start/ stop box
1 x 310ml Cartridge Mounting bracket and slide
1 x 1000T Digital Pneumatic controller
1 x 1000T airline kit/ power kit
1 x I/O Cable to controller
1 x CD-ROM with manuals and user guides
1 x 310ml Metal Retainer Body - 50 assorted parts
1 x Tip Kit (145 assorted tips)
