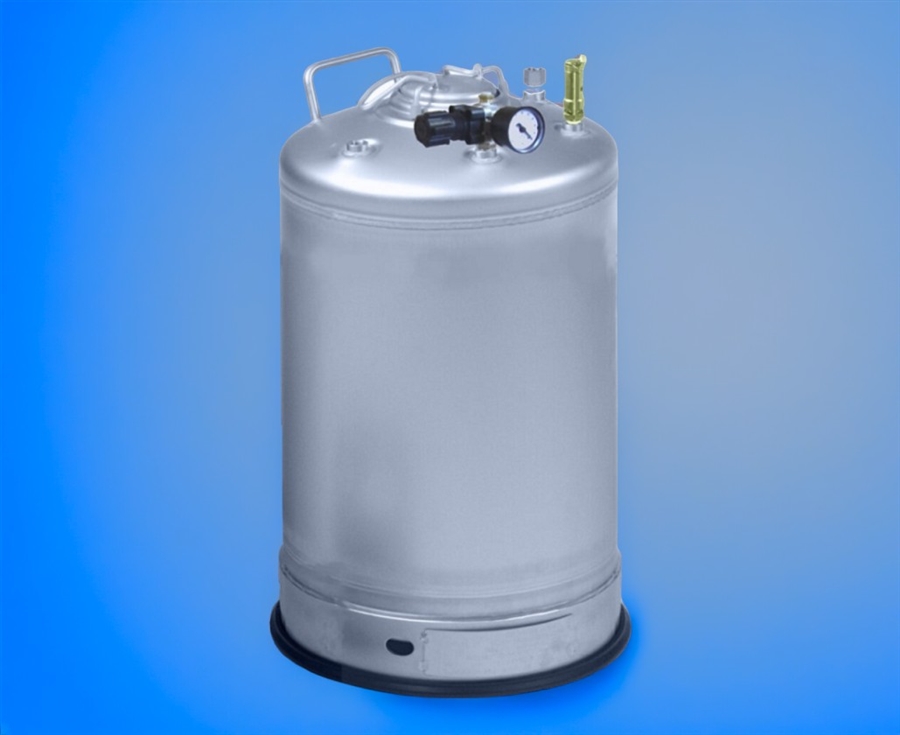

The AD6000CL-LTSS pressure pot 60 litre size is designed to accommodate most low to medium fluids, adhesives, solvents and UV's. Pot accommodates 1/4" OD feed tubing with stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the metering valve. Airtight seals ensure no leakage problems. Built in adjustable 100 psi air regulator and gauge. Wide open mouth for easy access. Handles fluid viscosity up to 35,000 cps. Air port quick connect fitting and top ported outlet. Type 316 stainless steel. With adjustable air regulator and gauge.
Part ID: AD6000CL-LTSS
Volume: 60 Litre
Weight: 17.3kg
Dimensions: 309mm Inside Diameter. 683mm Height.
Chamber: 305mm Inside Diameter. 665mm Height
Lid Opening Size: 98.5 x 82.5mm
Viscosity Range: Liquids up to 35,000 CPS
Max Fluid Pressure: 100 psi ( 6.9 Bar)
Air Inlet: 1/4" Thread Inlet
Material Outlet: 1/4" OD or 3/8" OD Tube Connection
Materials: Type 316 Stainless Steel/ Rubber Skit to Boot
Closure Oval: Pressure Closure
Closure Seal: EPDM Rubber O-ring
Certification: ASME Section VIII-01, Div. 1. PED - Module A - Category I - CE marked For group 1 and 2 liquids and group 2 gases
Commodity Code: 90289090
Origin: United States
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
- Part ID: AD6000CL-LTSS Weight: 17.3kg
- Viscosity Range: Liquids up to 35,000 CPS
- Max Fluid Pressure: 100 psi ( 4 Bar)
- Air Inlet: 1/4" thread inlet
- Material Outlet: 1/4" OD or 3/8" OD Materials: Type 316 stainless steel
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Ideal for use with most liquids
- Wide mouth
- 0-100 psi adjustable regulator and gauge
- Either 1/4" tubing or female luer lock fluid lines
- 6mm push fit air in
- 1 Year Warranty
|
|
|
|
|
|
|
|
|
