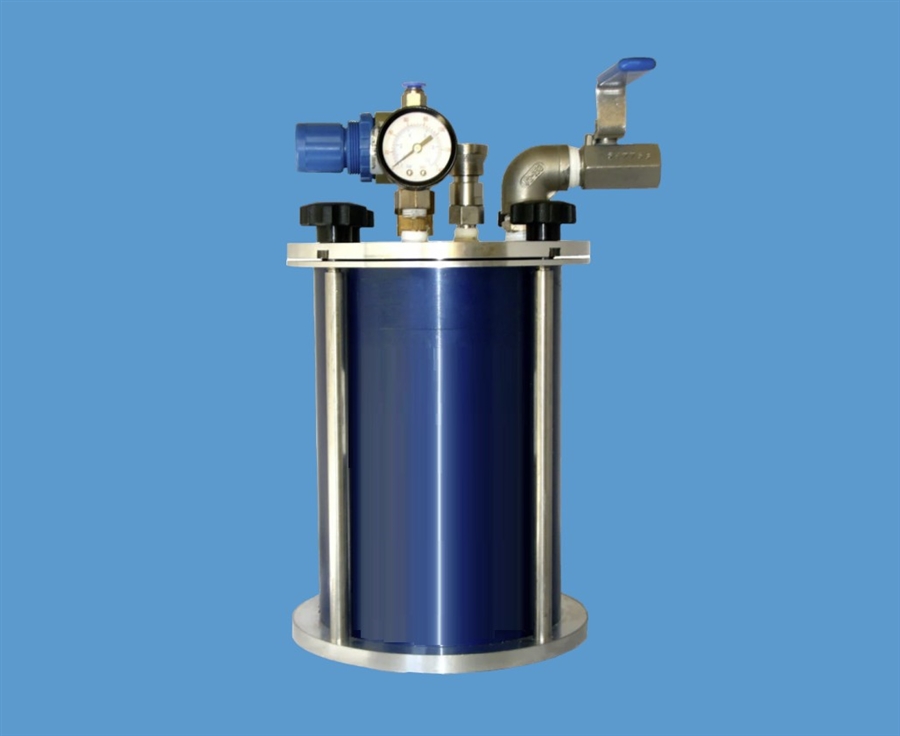

The PT piston tanks series have been designed specifically to consistently and hygienically feed air sensitive and air curing materials with medium to high viscosities as well as 2-part materials, to industrial dispensing processes. The tank is easy to operate using standard factory compressed air to pressurise fluids. Thanks to its smart design, the PT tank maintains a constant pressure on the fluid, allowing a constant flow rate, without contact with the air.

Its design keeps maintenance and operation to a minimum. All wetted parts of the tank are stainless steel 303/304, with Viton seals. The PT Series piston tank comes in one size of 2 litre. Operation and maintenance of the tank is very simple. Material is transferred into the tank manually by removing the lid. Any air bubbles trapped can easily be removed using the vacuum kit (supplied with the tank).

Fluids compatible with the PT Series Tank

- All UV light sensitive materials with medium to high viscosities
- All air curing materials, including adhesives with medium to high viscosities
- All medium to high viscosity materials, such as greases, silicones, epoxies, gels, creams, etc.
- A wide range of 2K materials in their single component form or pre-mixed two-component.
- Thixotropic materials

---

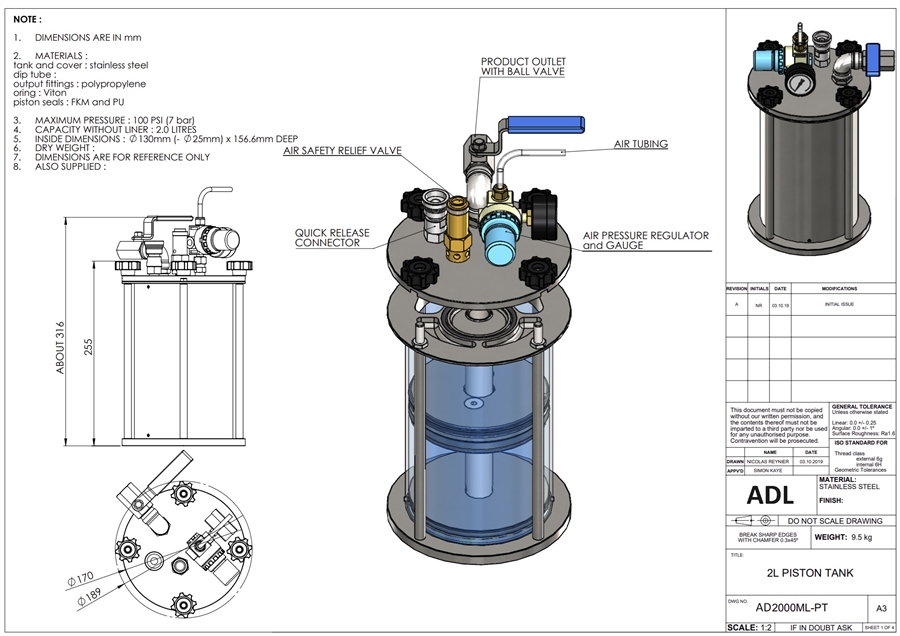

Technical Data
MPN: AD2000ML-PT
Type: Standard Pressure Reservoirs
Max. working pressure (psi/bar) 100 PSI /6.9 BAR
Capacity: 2 Litre
Weight 9 kg
Body Inner Diameter (mm) 130
Overall Outer Diameter (mm) 189
Overall height (mm) 316
Height without lid (mm) 230
Material Viscosity (cps) 20,000 to 100,000
* Only available in stainless steel 303/30
Warranty: 1 Year
Commodity Code: 90289090
Origin: UK

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies

• MPN: AD2000ML-PT
  Type: Standard Pressure Reservoirs
  Max. working pressure (psi/bar) 100 PSI /6.9 BAR
  Capacity: 2 Litre
  Weight 9 kg
  Body Inner Diameter (mm) 130
  Overall Outer Diameter (mm) 189
  Overall height (mm) 316
  Height without lid (mm) 230
  Material Viscosity (cps) 20,000 to 100,000
  * Only available in stainless steel 303/30
  Warranty: 1 Year
  Commodity Code: 90289090
  Origin: UK

100 psi safety pressure easily handles fluid with viscosity up to 40,000 cps. Air port quick connect 6mm fitting and top ported outlet. Easy connect to any air supply.
