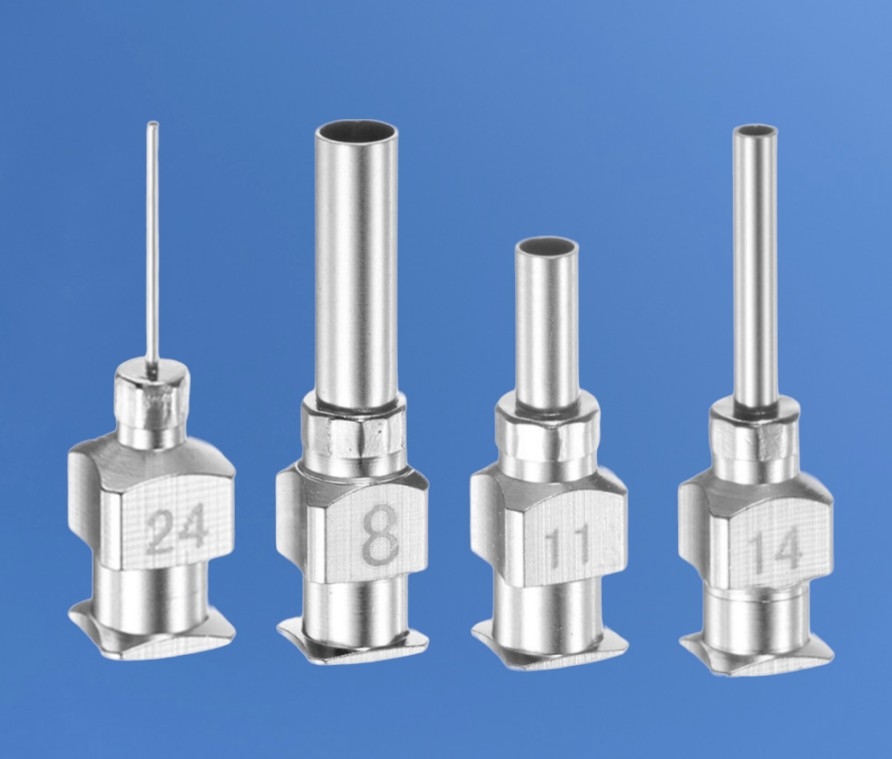

Precision blunt end steel tube to steel luer lock hub. Use this tip for dispensing adhesives, solvents, glues, primers, activators and many other fluids. Especially useful for aggressive solvents. A blunt end metal cannula.

The TSS needle series consist of a nickel plated brass luer lock hub with stainless steel precision shaft. This high quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow.

Suitable for dispensing most fluids, SMT adhesives and solvents. Industrial grade safe for use to 100 psi. Ideal for use on robot dispensing systems as tips are cut high precision for total consistency. Supplied in a sealed pack of 12 with batch codes.

Part ID: AD12SS-1/4
Materials: Brass/ Stainless Steel
Colour: Silver
Inner Diameter: 0.086" - 2.18mm
Outer Diameter: 0.109" - 2.77mm
Tube Length: 0.25" - 6.35mm
Connection: Luer Lock
Commodity Code: 73269098

Brand: Adhesive Dispensing Ltd
Pack Size: 12

Dispensing tips are designed to work with standard syringes and fittings. These tips are fully compatible with most low, medium and high viscosity fluids, adhesives, inks, pastes, gels and lubricants.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

• Part ID: AD12SS-1/4
• Material: Stainless Steel/Nickel Plated Brass
• Colour: Silver
• ID: 12 Gauge - 0.085" - 2.159 mm
• OD: 0.109" - 2.769 mm
• Length: 0.25" - 6.35mm
• Details: Industrial grade, Silicone Free

All metal tips are shipped by UPS tracked.

All metal tips are designed to work with all luer lock and luer slip syringe barrels and fittings. They are fully compatible with most fluids, adhesives, solvents and chemicals. When dispensing Cyanoacrylate adhesives, we recommend selecting our Teflon, Teflon Lined or Polypro tips. For high viscosity pastes, sealants, silicones, mastics, solder pastes and compounds, we suggest the use of our tapered tips. All metal tips are safe for use up to 100 psi pressure. These tips are precision manufactured for industrial use. Tips are certified silicone-free components to ensure they do not contaminate any fluids or adhesives that are dispensed from them.
