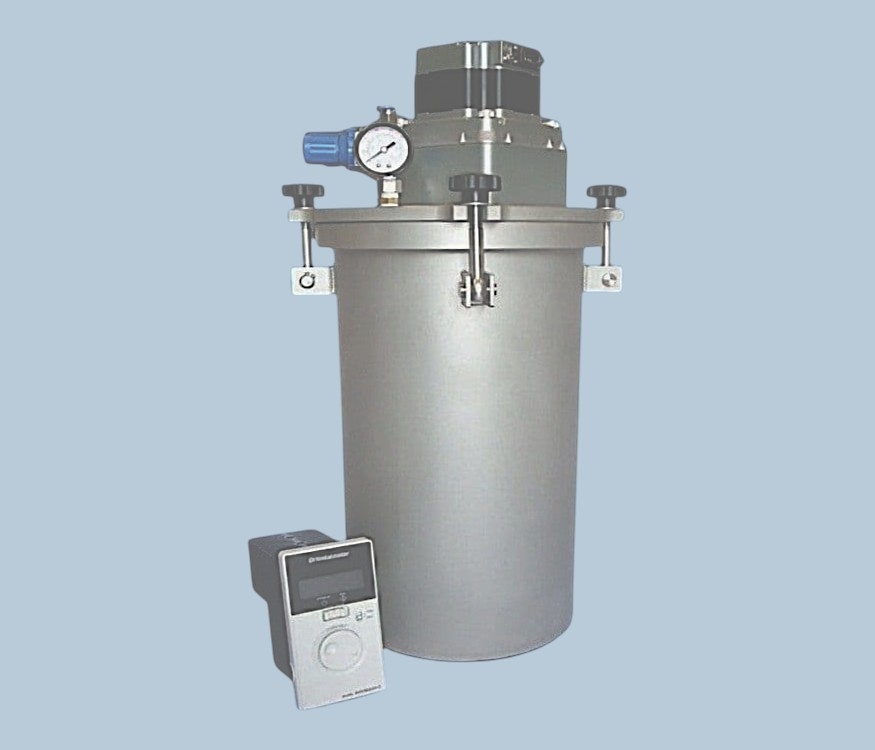

The AD1000CL-STEL pressure pot (maximum pressure 100 psi) is designed to accommodate all liquids and adhesives. The tank accommodates 6mm OD feed tubing with tube compression fittings for a continuous fluid path from the reservoir bottom inside the pot to the dispensing valve. Stainless steel body and lid. This version has an electric agitator built-in to ensure liquids do not settle out when in use and remain agitated.

Airtight seals ensure no leakage or air entrapment problems. Ideal for use with bottles of cyanoacrylate and anaerobic adhesives. 100 psi safety pressure easily handles fluid with viscosity up to 25,000 cps. Air port quick connect fitting and top ported outlet. Easy connect with 6mm push fit to any adjustable air regulator.

MPN: AD1000CL-STEL
Colour: - Silver
Outer Size: - 206mm W x 394mm H
Inner Chamber: - 200mm W x 360mm H
Weight: - 16kg
Max Fluid Viscosity: - Liquids up to 25,000 CPS
Max Pressure: - 100 psi
Air Inlet: - 6mm OD Push Fit Tube
Material Outlet: - 6mm OD Tube Compression
Wetted Parts: - Type 303/304 Stainless Steel
Minimum Speed: 30 RPM
Maximum Speed: 800 RPM
Speed Under Load: 235 RPM
Air Consumption: 5.3 Litre/ Second
Torque: 10 Nm
Mixer: Stainless Steel Shaft/ Single Blade Empeller
Warranty: - 1 Year
Commodity Code: 84798997

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

•
  Data Sheet

  Technical Drawings

  STEL Product Range

  User Guide

  Overview


100 psi safety pressure easily handles fluid with viscosity up to 30,000 cps. Air port quick connect 6mm fitting and top ported outlet. Easy connect to any air supply. Items are shipped by tracked courier.
