10 Litre Pressure Pot 0-60 psi AD1000CL-CT
AD1000CL-CT Pressure Pot 10 Litre
AD1000CL-CT

Alternative Views:
Price: £2,143.00 Exc VAT


Availability:: 1-2 Weeks
Product Code: AD1000CL-CT
Qty:

Description Technical Specs More Information

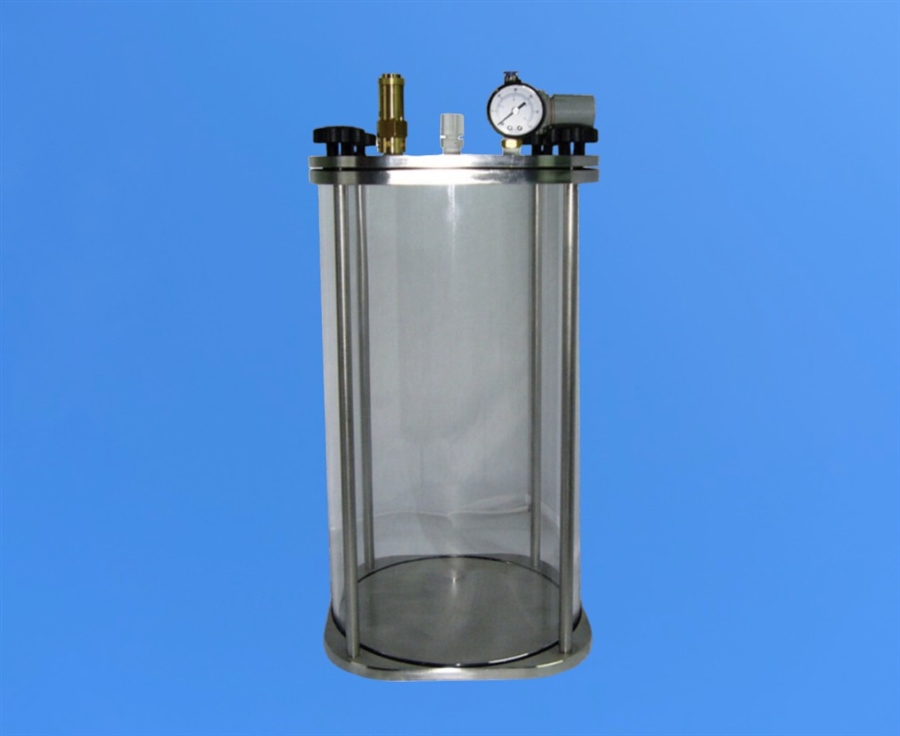

The CT series pressure tanks are see-through vessels designed to let the operators easily monitor fluid levels. The tanks are made of stainless steel 303 and toughened acrylic and can be pressurised up to 4 bar.
This choice of materials makes the CT series reservoirs compatible with a wide variety of fluids and applications and ensure that the contents do not corrode. All models can also be fitted with air agitators, low level sensor and additional ports. High quality stainless steel pressure pot (pressure up to 4 Bar) designed to accommodate many materials. It has a stainless steel compression fittings for a continuous fluid path from the reservoir inside the pot to the point of use but can use plastic fittings if dispensing reactive adhesives. Airtight seals ensure no leakage or air entrapment problems. 60 psi operating pressure easily handles fluid with viscosity up to 25,000 CPS.
Material: Type 303 Stainless Steel/ Acrylic Wall
Colour: Silver/ Clear
Outer: 206mm W x 448mm H
Chamber: 190mm W x 384mm H
Tank Thickness: 3mm
Lid Thickness: 15mm
Air Inlet Thread: 1/4 Inch NPT
Weight: 7.3 kg
Max Pressure: 100 psi (6.9 Bar) - Safety Valve Set at 7 bar
Working Rated Vacuum: 0 to -1 bar at from 0 C to 38 C
Closure: 4 stainless steel swing bolts and black plastic star grips
Closure Seal: Fluorocarbon Rubber O-ring
LID
12mm thick stainless steel
1 INPUT connection 1/4" NPT with pressure regulator & gauge
1 OUTPUT connection 1/4" NPT with compression fitting 6mm
1 OUTPUT connection 1/4" NPT with safety relief valve
Warranty: 1 Year
Details: CE certified and Rohs Compliant
Certification: ASME Section VIII-01, Div. 1 Directive 2014/68/EU Article 4 Clause 3 For group 2 liquids
Commodity Code: 90289090
Origin: Europe

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.



Features
  • Material: Type 303 Stainless Steel/ Acrylic Wall
    Colour: Silver/ Clear
    Outer: 206mm W x 448mm H
    Chamber: 190mm W x 384mm H
    Tank Thickness: 3mm
    Lid Thickness: 15mm
    Air Inlet Thread: 1/4 Inch NPT
    Weight: 7.3 kg
    Max Pressure: 100 psi (6.9 Bar) - Safety Valve Set at 7 bar
    Working Rated Vacuum: 0 to -1 bar at from 0 C to 38 C
    Closure: 4 stainless steel swing bolts and black plastic star grips
    Closure Seal: Fluorocarbon Rubber O-ring
