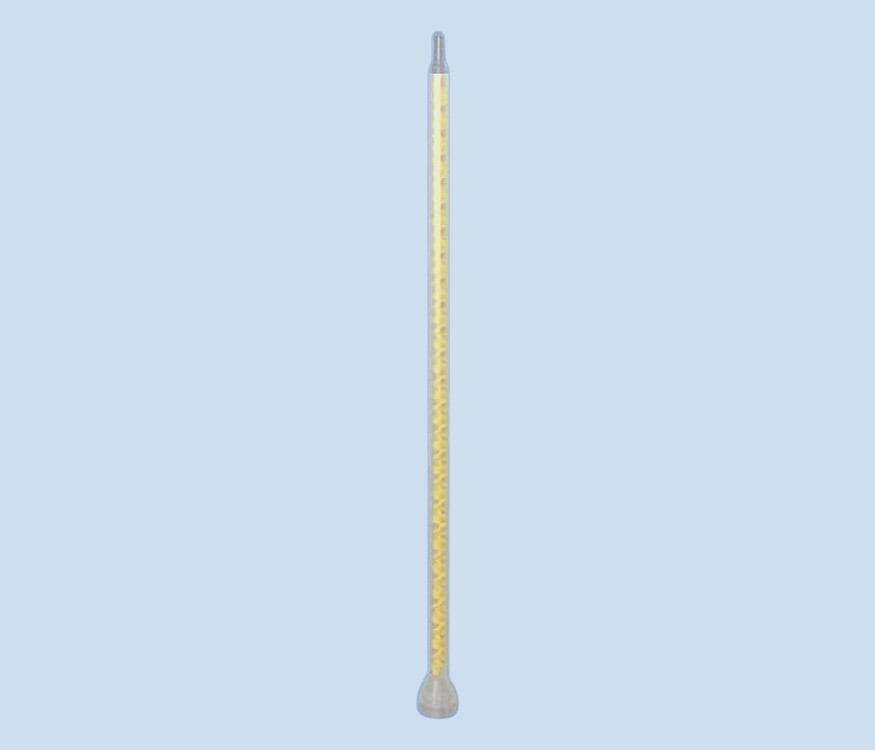

MS-Series (Yellow) Static Mixers for Meter-Mix Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene. This version features a luer-lock tip outlet.

---

Part ID: MS06-56L
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Yellow Elements
Inner Diameter: 6.4mm
Outer Diameter: 11mm
Mixer Length: 392mm
Nozzle Tip Diameter: 1.9mm
No. of Elements: 56
Retaining Method: 7/8"-9 Thread
Material Volume: 35.2ml
Max. Pressure: 30 BAR
Commodity Code: 39269097
Brand: Sulzer Mixpac Medmix Statomix

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

• Part ID: MS06-56L Material: Polypropylene
• Colour: Natural Outer, Yellow Elements
• Inner Diameter: 6.35mm (0.250")
• Outer Diameter: 10.50mm (0.413")
• Mixer Length: 392mm (14.882")
• No. of Elements: 56
• Material Volume: 11ml
• Max. Pressure: 100psi

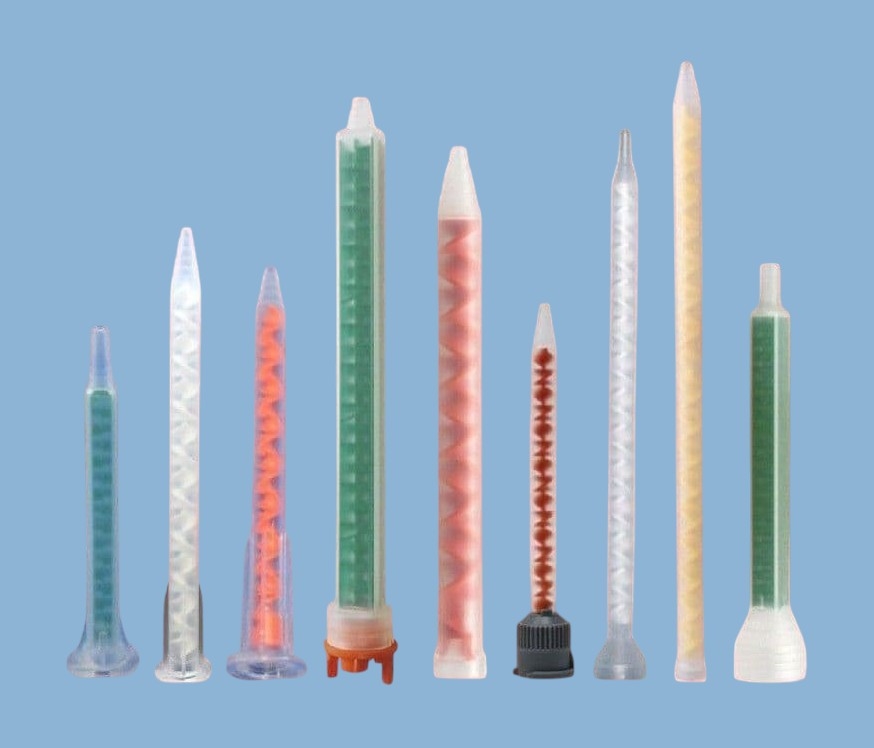

High density moulded static mixer nozzles with bell attachment to cartridges or machines. Stepped end design for direct dispensing or attachment of reducer fitting when using small luer lock needle tips. Silicone free and industrial grade.

All nozzles are safe for use up to 100 psi pressure. Nozzles are precision manufactured for  industrial applications. All nozzles are certified silicone-free to prevent contamination of any liquids dispensed from them.
