A 30 gauge brush tip suited to dispensing most fluids. Certified silicone-free and industrial grade safe for use to 100 psi. Use these double helix Brush Tips for spread applications such as glues and other materials. Brush is made of soft nylon. Supplied in a sealed pack of 10.

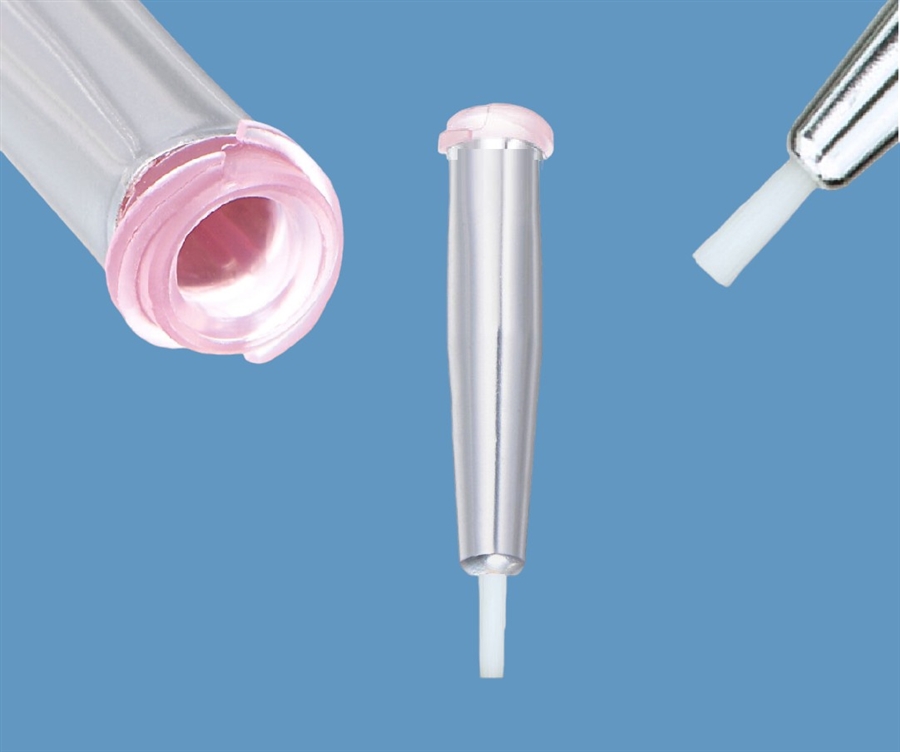

High quality products for multi-use. Suitable for use with all dispensing guns, pneumatic dispensers, dosing valves and XYZ robots. The tip features a slightly tapered internal design where the shaft meets the hub to improve fluid flow and reduce any restriction. This allows for a lower pressure to be used for dispensing adhesives, inks and other fluids.

Part ID: AD-1001-30BTSPK
Material: Polyethylene/ Nylon
Colour: Silver Body / White Bristles / Lavender Hub
Inner Diameter: 0.15mm
Length: 1.5" (2.0" incl. brush)
Maximum Pressure: 100 PSI
Details: Industrial Grade, Silicone Free
Commodity Code: 39269097
Brand: Adhesive Dispensing Ltd
Pack Size: 10 Tips

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

• Part ID: AD-1001-30BTSPK Brush dispense tip
• Material: Polyethylene/ Nylon
• Colour: Silver Body/ White Bristles/ Lavender Hub Inner Diameter: 0.15mm Length: 1.5" (2.0" incl. brush)
• Details: Industrial grade, Silicone Free

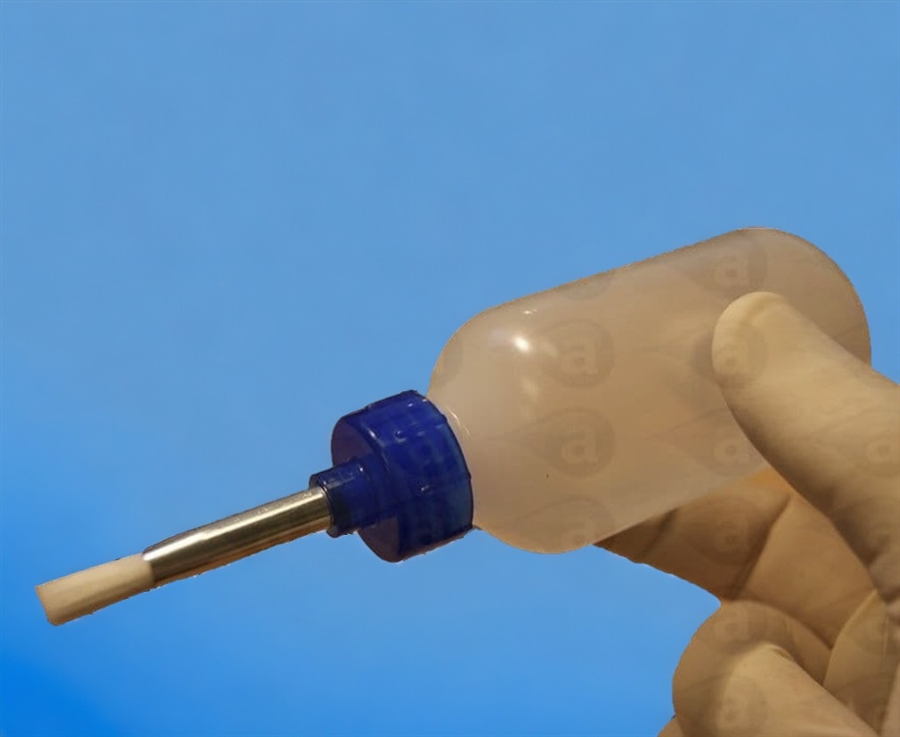

Brush tips are designed to work with all luer lock and luer slip syringe barrels and fittings. They are fully compatible with most fluids, adhesives, solvents and chemicals.

Brush tips are shipped by DHL or UPS. Brush tips are safe for use up to 100 psi pressure. These tips are precision manufactured for industrial use.
