Nozzle 2.4mm diameter for Fisnar PPD-130 Part 561012-B
PPD-130 Nozzle
Alternative Views:
Price:
£
39.95 Exc VAT
Availability::
Usually Ships in 2 to 4 Weeks
Product Code:
561012-B
Qty:
Description
Technical Specs
More Information

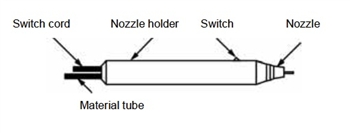

Nozzle 2.4mm diameter for use with Fisnar PPD-130 peristaltic pump dispenser. Use this nozzle with the standard machine and with black or clear Teflon or silicone tubing (1.9mm ID x 2.5mm OD tube - parts 560995A clear and 560995BA black tubes).
PPD-130 Specifications
Weight 6.6lbs (3kg)
Input Voltage: 110V & 220V models 50/60 Hz
Dispense time: 0.01 - 99.99 seconds
Internal Voltage: 5VDC
Cycle initiation: continuous & timed
Rotor Speed: up to 120 rpm (max.)
Flow speed: 0.01 - 6ml/min. (Teflon tube)
0.1 - 20ml/min (silicone tube)
Dispense pressure: over 1.5Kg/cm2
Direction of pump: both direction (Forward / Reverse)
Snuff-back: programmable by reverse rotation
Digital display: time count down
I/O: connection for remote operation
Use with PPD-130 Fisnar product only
Features
For use with PPD-130 dispenser only.
