MS-Series (Yellow) Static Mixers for Machine Systems and Cartridges

Static Mixers attach to both meter, mix, and dispense machines and to dual component cartridges. Static Mixers provide an even mixing of two-part materials without the time consuming process of hand mixing. These mixers have a bell mouth housing diameter of 16.7mm.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene.

---

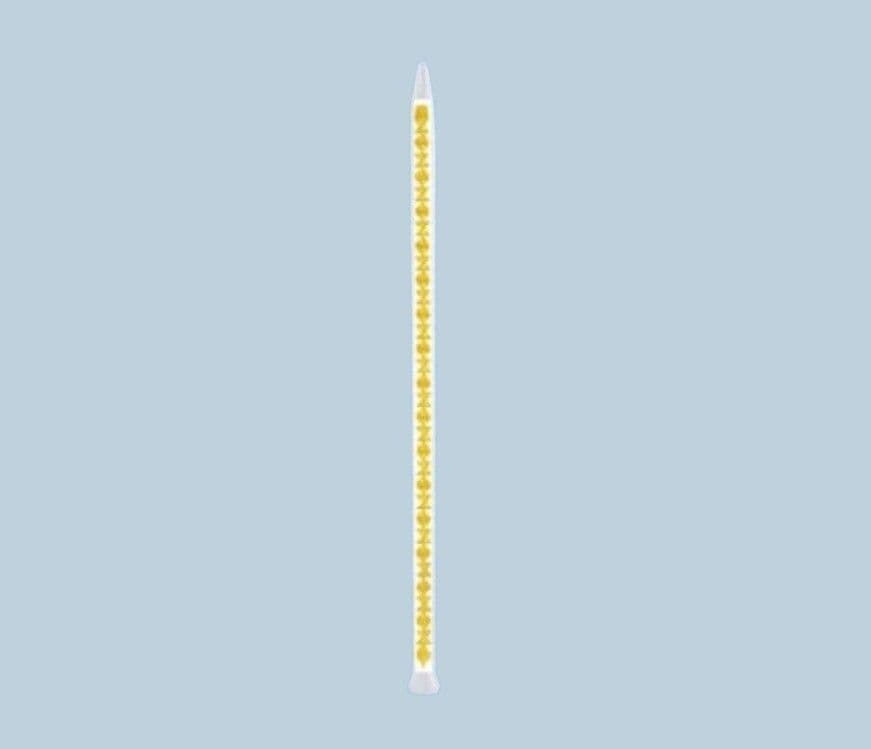

Part ID: MS 10-32T - 102515
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Yellow Elements
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Housing Diameter: 16.7mm
Mixer Length: 352mm
Nozzle Tip Diameter: 3.0mm
No. of Elements: 32
Retaining Method: 7/8"-9 Thread
Material Volume: 23.0 ml
Max. Pressure: 22 BAR (319 PSI)
Commodity Code: 39269097
Pack Size: 100

---

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

---

• Part ID: MS10-32T Material: Polypropylene
• Colour: Natural Outer, Yellow Elements
• Inner Diameter: 10mm (0.394")
• Outer Diameter: 14mm (0.551")
• Mixer Length: 352mm (13.860")
• No. of Elements: 32
• Material Volume: 23ml
• Max. Pressure: 22 BAR

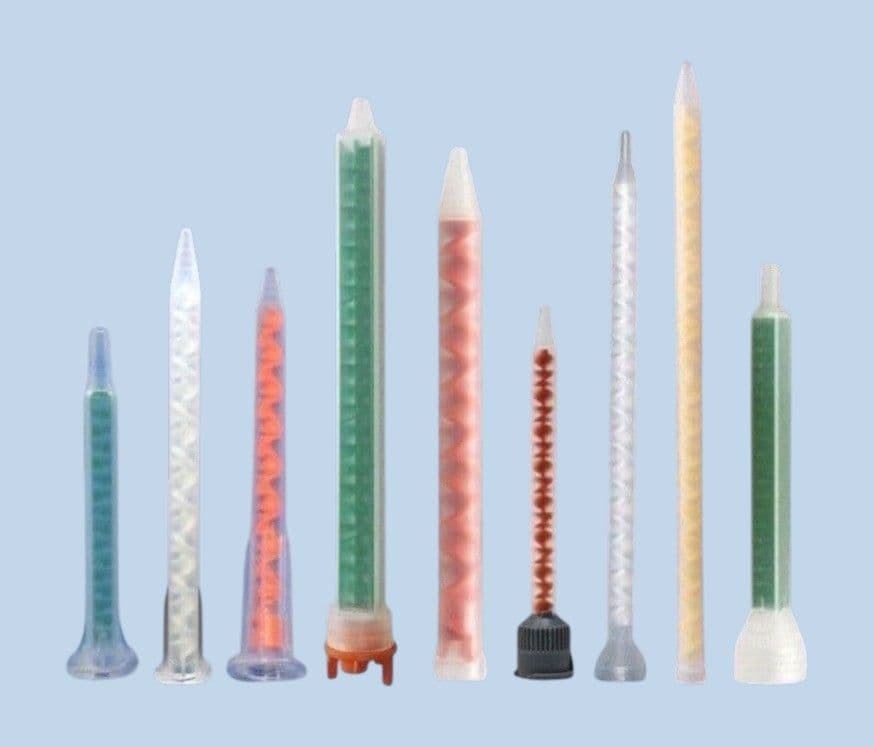

High density moulded static mixer nozzles with bell attachment to cartridges or machines. Stepped end design for direct dispensing or attachment of reducer fitting when using small luer lock needle tips. Silicone free and industrial grade.

All nozzles are safe for use up to 100 psi pressure. Nozzles are not for medical use but are precision manufactured for  industrial applications. All nozzles are certified silicone-free to prevent contamination of any liquids dispensed from them.
