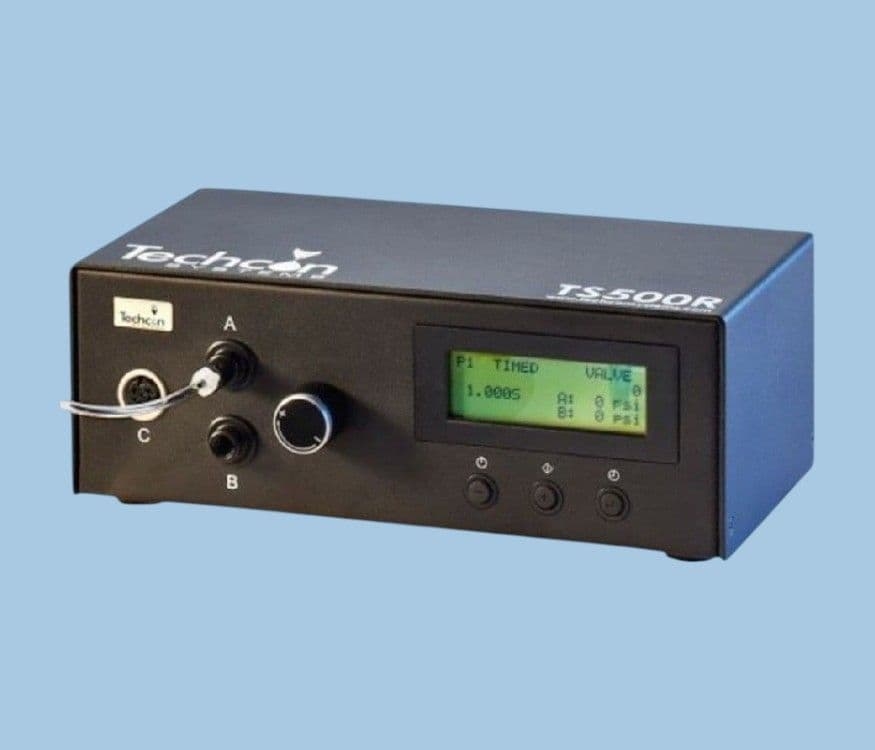

Positive Displacement Controller PC Pump TS500R-PC
Product Code: TS500R-PC
Price: £1,202.00
Description
The TS500R-PC is a universal valve controller for PC pump valves. It can run at up to 900 cycles per minute, it has an LCD display, memory storage, 0.008 to 60 second timer, +/- 0.001% repeat tolerance, low pressure alarm feature, universal voltage, I/O connector.
The display is a clear 20 x 4 segment LCD and shows time and pressure settings in both PSI and BAR. Up to 10 individual program settings can be stored. The TS500R features an adjustable low pressure alarm for higher levels of control. With a universal power supply, it is a fully 'plug and play' system and can be used immediately, anywhere in the world, with its accompanying tools and accessories.
This system uses a highly responsive air pressure management system, coupled with a digital timing circuit and display, to provide consistent, repeatable control over all types of valves.
Part ID: TS500R-PC
Timer: 0.008 - 60 seconds
Output Pressure: Up to 100 psi
Input Pressure: 70-100 psi
Size: 10.0 W x 7.5 D x 4.0 H Inches (254mm x 191mm x 102mm)
Weight: 2.6kg (5.8lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 900 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
Commodity Code: 90289090
The display is a clear 20 x 4 segment LCD and shows time and pressure settings in both PSI and BAR. Up to 10 individual program settings can be stored. The TS500R features an adjustable low pressure alarm for higher levels of control. With a universal power supply, it is a fully 'plug and play' system and can be used immediately, anywhere in the world, with its accompanying tools and accessories.
This system uses a highly responsive air pressure management system, coupled with a digital timing circuit and display, to provide consistent, repeatable control over all types of valves.
Part ID: TS500R-PC
Timer: 0.008 - 60 seconds
Output Pressure: Up to 100 psi
Input Pressure: 70-100 psi
Size: 10.0 W x 7.5 D x 4.0 H Inches (254mm x 191mm x 102mm)
Weight: 2.6kg (5.8lb)
Input Voltage: 100-240 V AC
Warranty: 1 Year
Cycle Rate: Up to 900 cycles/minute
Timing Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
Commodity Code: 90289090
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
Features
- Adjustable 0-100 psi air regulator
- 0.008 to 60 second adjustable timer
- Controls all valve types
- LCD large display
- Shot counter display
- Footswitch and I/O connector
- Complete with accessory and airline kit
