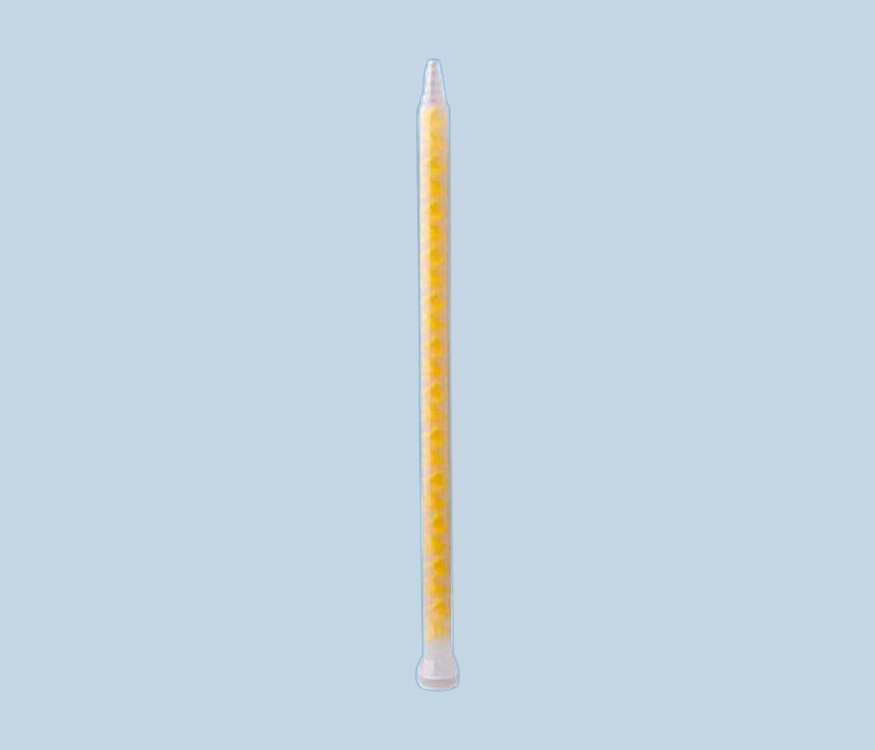

MS-Series (Yellow) Static Mixers for Machine Dispensing Systems

Static Mixers attach to both meter, mix, and dispense machines and to dual cartridges. Static Mixers provide an even mixing of two-part materials without the hassle of hand mixing.

The bell mouth is the material entry end of the nozzle and the part that fits over the meter mix machine exit manifold. Static mixing elements inside the body of the nozzle are manufactured from high grade polyacetal to withstand the higher pressures of metering and mixing machines. Static mixer housings are polypropylene. Use these mixers for high pressure machines with a nozzle housing diameter of 16.7mm.

Part ID: MS 10-24T - 102514
Material: Polypropylene, Polyacetal
Colour: Natural Outer, Yellow Elements
Nozzle Outlet Design: Stepped
Inner Diameter: 10.0mm
Outer Diameter: 14.0mm
Mixer Length: 276mm
Nozzle Tip Diameter: 3.0mm
No. of Elements: 24
Retaining Method: 7/8"-9 Thread
Material Volume: 16.0 ml
Max. Operating Pressure: 22 BAR - 319 PSI
Commodity Code: 39269097
Origin: UK
Brand: Sulzer Mixpac MedMix

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Features

Industry standard for mix machines
Silicone-free Safe for use to 319 psi
Stepped nozzle end
Supplied in sealed packs of 100
