Description

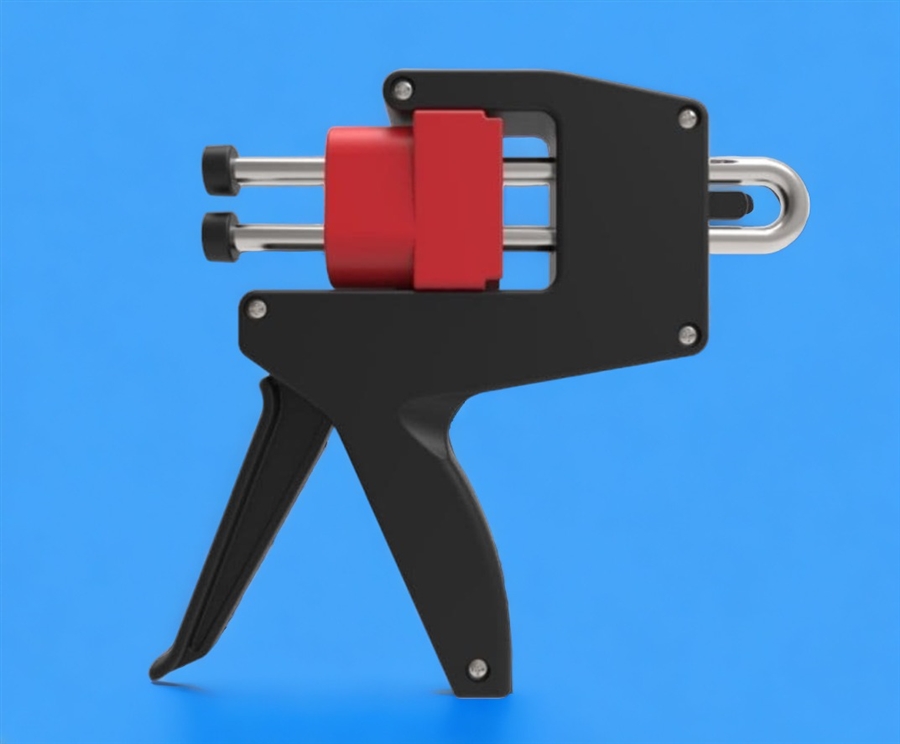

Manual twin cartridge gun 1:1/2:1 ratio. Suitable for use with 50ml dual cartridges.
For adhesives which are supplied in two part, side-by-side syringe cartridges and push the adhesive through a static mixing nozzle. The lightweight portability and durable construction of the manual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
This version applicator is 50ml size for 1:1/2:1 ratio only.
Specifications:
Lightweight: 0.41kg / 0.9lbs
Dispenser Length: 181mm / 7.13in
Maximum Thrust: 1.3kN (stroke 5.4mm)
Handle Material: Reinforced Nylon
Cartridge Holder Material: Reinforced Nylon
Cartridge Capacity: 50mL (1.8oz)
Cartridge Ratios: 1:1, 2:1
Mechanical Advantage Ratio: (26:1)
Viscosity: Low/Medium
Standard Colour: Black/Red
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Easy hand lever leverage
- Controlled deposit or bead
- Lightweight robust construction
- Quick cartridge attachment
- Low cost dispensing solution
