Description

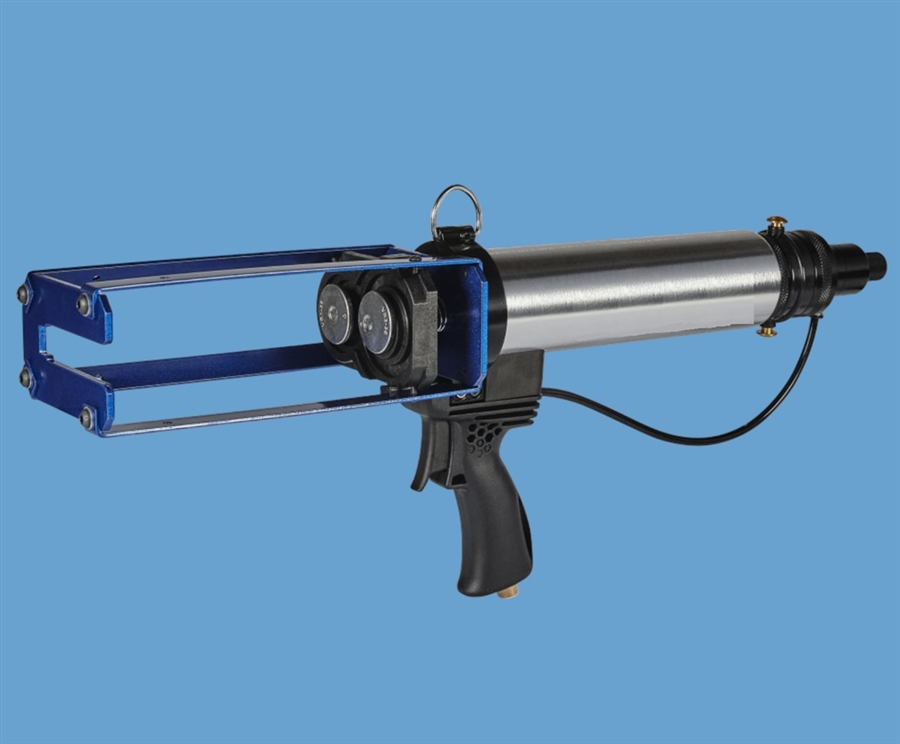

Pneumatic Gun for Two-Component Cartridges
A well balanced and versatile air-powered cartridge gun for epoxy type two component side by side cartridges. This applicator device is very well built and suitable for industrial applications. This is a rod driven gun. Air pressure can be set on the adjustable regulator to adjust the rod forward and reverse speed. This allows the gun to be set to suit the viscosity of the resin and the flow rate required to suit the application.
For epoxies, adhesives and other materials that are supplied in 400ml two part, side-by-side 1:1, 2:1, 4:1 and 10:1 ratio cartridges with the use of a static mixing nozzle. The balanced and durable construction of our dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. Gun supplied with quick change kit to adapt to the different cartridge ratios. (This version will also accept 200ml 1:1, 2:1, 4:1 and 10:1 ratio dual cartridges as it is a side loading frame).
MPN: CG400-2
Materials: Nylon, Polypro, Steel, Zinc
Colour: Silver/ Blue/ Black
Size: 400ml dual 1:1, 2:1, 4:1, 10:1 Ratios (also 200ml dual 1:1, 2:1, 4:1, 10:1 Ratios)
Weight: 3.17kg
Length: 609mm
Thrust: Nominal Thrust 490 lbs. @ 100psi
Max Pressure: 100 PSI
Warranty: 1 Year
Commodity HS Code: 90289090
Compatible with the cartridge types below
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Nominal Thrust 490 lbs. @ 100 psi
- 4" cylinder
- For Use with 400 ml Cartridges
- Easily Converts in Just Seconds with Snap In/Snap Out Push Disks
- Slide in/Side Load
- Air Regulator
- Air Dump Valve Stops Flow Instantly
- Reverse Air Button
- Quick Disconnect Nipple Included
- All Size Push Disks Included
- Replacement Parts Available
