Description
For adhesives which are supplied in 1:1 or 2:1 ratio, 50ml two part cartridges. Where the adhesive is pushed through a static mixing nozzle. The lightweight portability and durable construction of the pneumatic guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
Features an adjustable flow control. Supplied with user guide and warranty card.

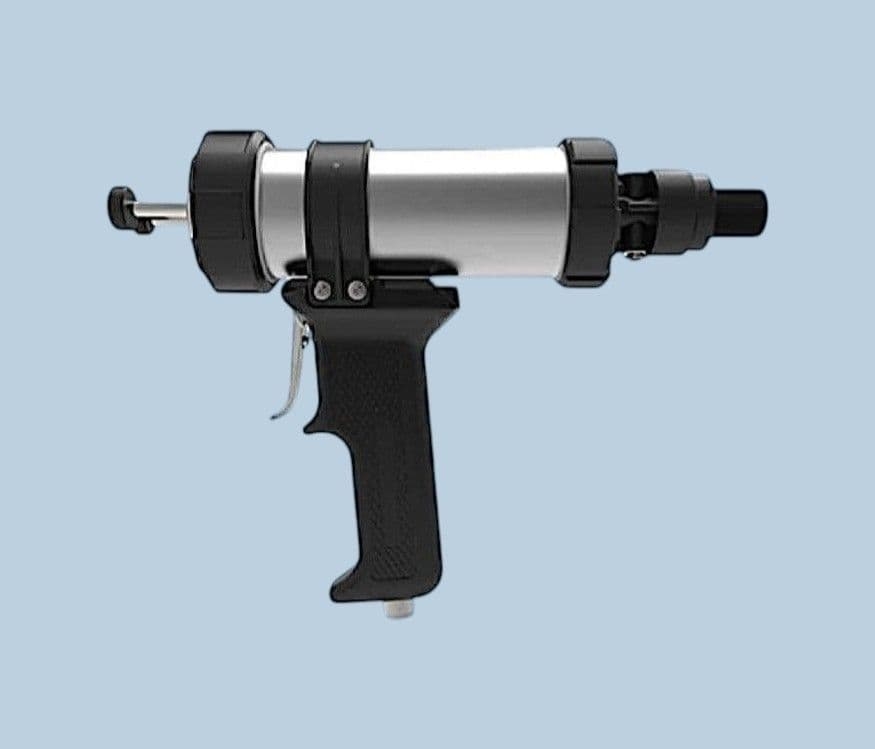

This gun will handle 50ml 1:1 and 2:1 ratio dual component cartridges. Ideal for use with prefilled adhesive epoxy cartridges. This gun uses metal rods that push down into the cartridge pistons to provide an even flow. An adjustable wheel to set the flow rate.
Part ID: ADCBA-50
Materials: Nylon, Polypropylene, Steel
Colour: Silver/ Black
Cartridge Size: 50ml 1:1 and 2:1 ratio
Weight: 0.43kg
Frame Length: 105mm
Height: 194mm (includes handle)
Max Pressure: 100 PSI
Thrust: 5 kN
Warranty: 1 Year
Approvals: CE, REACH
Commodity Code: 90289090
Origin: GB
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
Features
- Fits all 50ml 1:1/2:1 size dual cartridges
- Easy cartridge load and unload
- Controlled deposit or beads
- Lightweight robust construction
- Fast air exhaust reduces drips
- Built in adjustable air regulator
