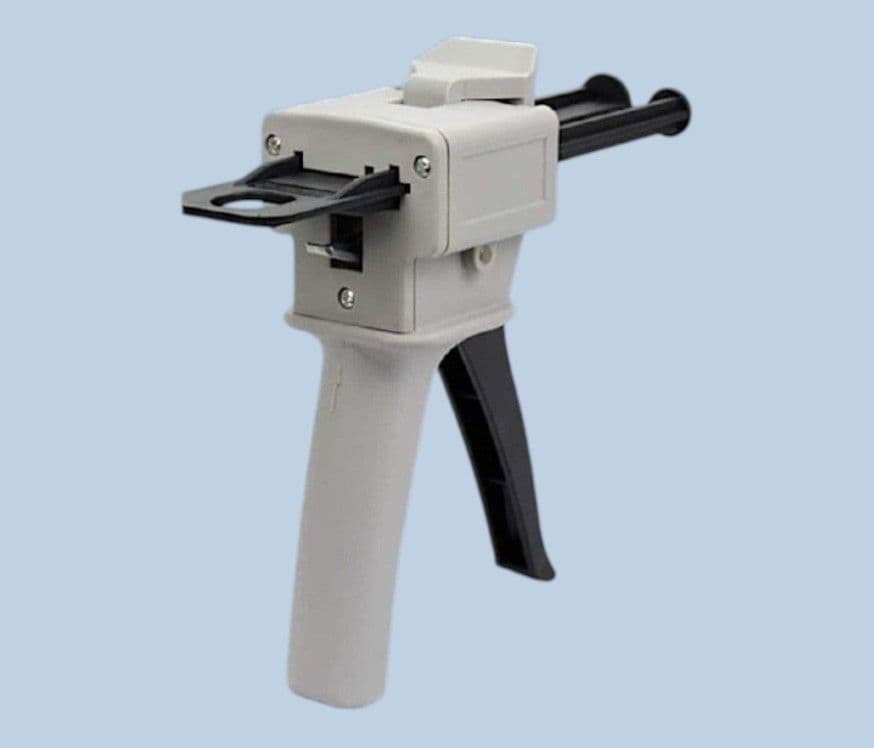

For adhesives which are supplied in two part, side-by-side syringe cartridges and push the adhesive through a static mixing nozzle. The lightweight portability and durable construction of the manual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
Manual guns in this
range are available in two sizes with four mix ratios (1:1, 2:1, 4:1 and
10:1). This version applicator gun is 50ml 10:1 ratio only. Use with standard rectangular ended 50ml cartridges as below
.
The
dual cartridge is clipped into the gun handle. The plunger rod is
inserted and pushes the pistons down in the cartridge to provide a
controlled flow. Our guns are safe and hygienic, reducing risk of
operator contact with the materials being dispensed. They fit
comfortably into the hand for use over long periods of time and minimum
risk of repetitive strain injury.
Part ID: ABM-50M10
Materials: Nylon, Polypropylene, Polyethylene
Colour: Grey/ Black
Size: 50ml
Length: 109mm (excluding push rod)
Height: 159mm
Warranty: 1 Year
This version gun is suitable only for the bottom square cartridge style (top). For the bottom style rounded cartridge, use ABM-25M10R gun.
Adhesive
Dispensing Ltd provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents, primers and
activators through to thick pastes, sealants, silicones, gels and
epoxies.
