For epoxies, adhesives and other materials that are supplied in 150ml/ 300ml/ 600ml dual side-by-side 1:1, 2:1 or 4:1 ratio cartridges with the use of a static mixing nozzle. The lightweight and durable construction of these dual guns make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive.
For 300ml x 300ml, 300ml x 150ml, 300ml x 75ml, 150ml x 150ml cartridge types. This is a lightweight hand trigger operated cartridge gun supplied with parts to handle a variety of cartridge ratio's. The CG Series guns are covered by a 1 year warranty and feature a wear compensating device.
Part ID: CG300-1
Materials: Nylon, Polypro, Steel, Zinc
Colour: Black
Cartridge Sizes: 150ml, 300ml dual 1:1 2:1 or 4:1 ratios
Weight: 1.8kg
Thrust: Nominal Thrust 490 lbs. @ 100psi
Air Input Connection: 1/4" BSP Male Thread
Max Pressure: 100 PSI
Warranty: 1 Year
Commodity Code: 90289090Approvals: CE
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
- Part ID: CG300-1
- Materials: Nylon, Polypro, Steel, Zinc
- Colour: Black
- Size: 300ml dual 1:1 or 2:1 ratios
- Weight: 1.8kg Thrust: Nominal Thrust 490 lbs. @ 100psi
- Max Pressure: 100 PSI
- Warranty: 1 Year
This gun is compatible with 300ml 1:1 and 2:1 ratio dual cartridge sets.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Nominal Thrust 490 lbs. @ 100psi
- 2.5" cylinder

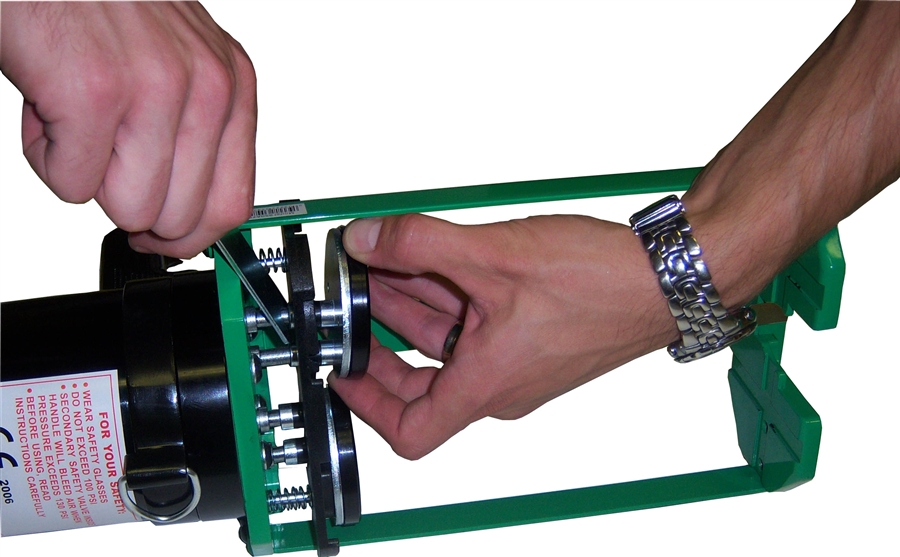

- Easily Converts in Just Seconds with Snap In / Snap Out Push Disks
- Patented Cartridge Stabilizing Plate Securely Holds All Cartridges
- Adjustable Air Regulator
- Air Dump Valve Stops Flow Instantly
- Reverse Air
- Quick Disconnect Nipple
|
|
|
|
|
|
|
|
|
