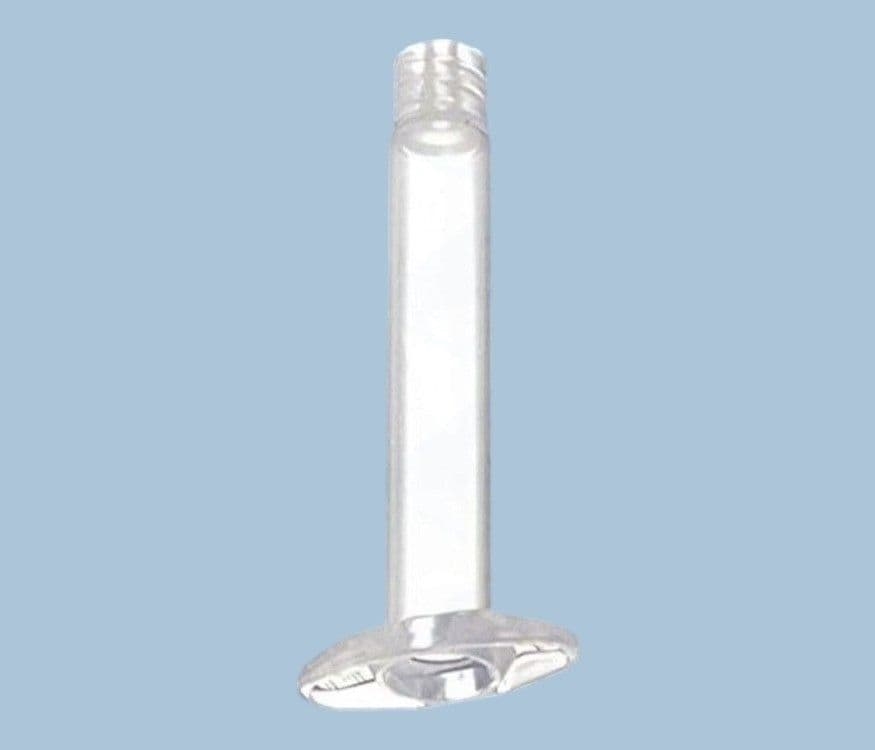

Premium grade 900 series dispensing syringe barrels from Adhesive Dispensing Ltd. These industrial barrels are specially designed for use with dispensing equipment, allowing you to accurately and efficiently dispense all types of assembly fluids - from watery liquids to thick pastes.

Our syringe barrels are made from low friction polypropylene, ensuring precision, consistency and productivity. And with their silicone and chloride-free composition, they are safe for use in any dispensing application. You can use them manually or with a pneumatic dispenser, making them a versatile choice for all your dispensing needs.

The double helix luer lock outlet featured in our barrels ensures a secure and leak-free attachment for your dispense tips. And to further enhance your dispensing process, we offer wiper pistons that eliminate waste and allow for precise control over deposits, as well as reducing material fumes. With a maximum operating pressure of 100 psi, these barrels can handle even the most demanding dispensing tasks.

Our syringe barrels come in a handy sealed pack, complete with a label and batch code for easy identification. And for your peace of mind, we offer a no-quibble guarantee against any faults or defects. Our natural clear barrels are perfect for use with most adhesives, sealants, gels and pastes.

Specifications:
Part Code: AD903-N-500
Material High Density Polypropylene (HDPP)
Volume Capacity 3cc (3ml)
Total Overall Length 2.981" (75.72mm)
Outer Diameter 0.45" (11.42mm)
Inner Diameter 0.38" (9.58mm)
Flange Width 1.23" (31.24mm)
Tip Hole Outlet Size 0.118" (3.00mm)
Maximum Pressure: 100 PSI
Colour Natural (Clear)
Brand: Adhesive Dispensing Ltd
Commodity Code: 39269097
Pack Size: 500

At Adhesive Dispensing Ltd, we are committed to providing you with the best equipment to meet your dispensing needs. With our range of syringe barrels and wiper pistons, you can be sure of accurate, efficient, and hassle-free dispensing every time. Trust in our premium products for all your adhesive dispensing needs.

---

• Material High Density Polypropylene (HDPP)
• Volume Capacity 3cc (3ml)
• Total Overall Length 2.981" (75.72mm)
• Outer Diameter 0.45" (11.42mm)
• Inner Diameter 0.38" (9.58mm)
• Flange Width 1.23" (31.24mm)
• Tip Hole Outlet Size 0.118" (3.00mm)
• Colour Natural (Clear)
• Mfg. Part AD903-N

Syringe barrels are designed for use with pneumatic dispensing equipment or syringe guns. They are thick walled with wide flanges and so designed for high pressures. The internal bore is zero draft meaning there is no taper. This ensures the wiper piston inside moves down without restriction to improve dispense performance.

Use these barrels with pastes, adhesives, solvents, epoxies, RTVs, silicones, PVAs, inks and gels. This range have luer lock ends for twist on tip attachment. These products are safe for use up to 100 psi pressure. Barrels are not for medical use but are precision manufactured for industrial applications.

Components are certified silicone-free components and will not contaminate any fluids that are dispensed from them. This product will ship by courier.

Suitable for...
	Adhesives
	Silicone's
	Epoxies
	Primers
	Solvents
	Lubricants
	Pastes
